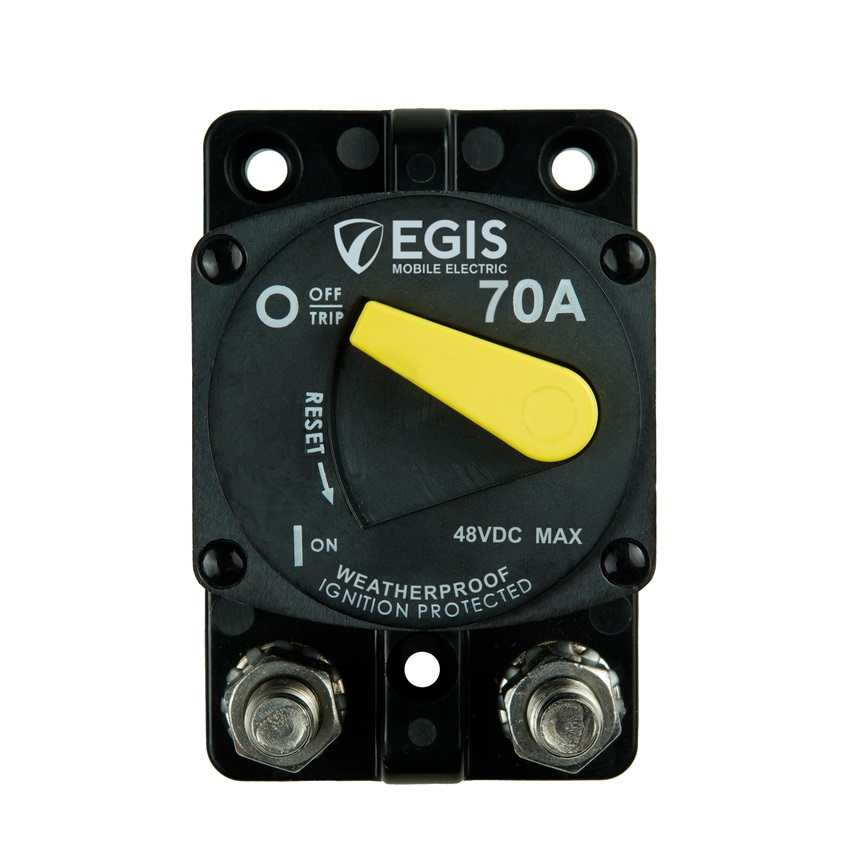

Egis Mobile Electric 4704-070 70A Surface Mount Circuit Breaker, 87 Series

The Egis Mobile Electric 4704-070 is a 70 amp, 87 Series surface mount circuit breaker. It protects marine, RV, and automotive electrical systems from short circuits and over-current loads. Overload protection helps keep wire insulation from overheating. The breaker also works as a manual on/off switch.

Key Features:

• 70A rating in a surface mount design
• Sealed against dust and water (IP66) for reliable protection over the life of the installation
• 48 VDC maximum voltage supports 12 and 24 VDC systems and adds protection for 36 and 48 VDC systems
• High interrupt current: 5,000 amps at 14 VDC and 3,000 amps at 28 VDC, suited to circuits fed by large paralleled battery banks
• Meets ABYC E-11 interrupt requirements
• Ignition protected, so it can be installed in closed compartments where explosive gases may be present
• Automatic protection and manual switching in one compact device, rated for 2,000 cycles at full current
• Visual trip indication: a bright yellow paddle shows when the circuit has opened and is also used to reset to On
• Harsh-environment construction: sealed body, high-temperature materials for engine compartments, and stainless steel hardware with self-locking terminal nuts
• Reinforced mounting tabs are built to withstand vibration
• 4-year manufacturer warranty

This breaker suits boats, RVs, and vehicles that need durable, resettable circuit protection in demanding conditions.
