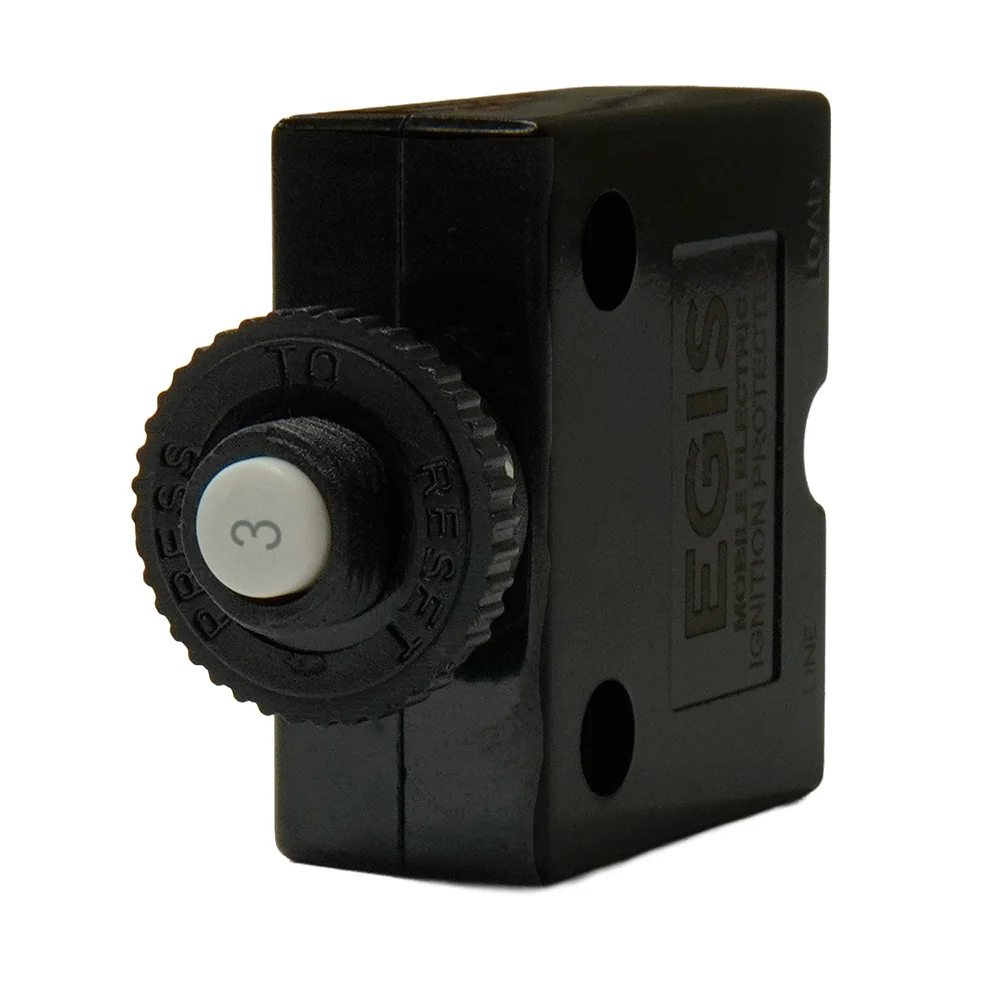

Egis Mobile Electric 4711-03 3A Push-to-Reset Panel Mount Circuit Breaker Spade Terminal

The Egis Mobile Electric 4711-03 is a 3-amp push-to-reset panel mount circuit breaker with 0.25" male spade terminals, designed for DC electrical systems in marine, RV, and mobile power applications. It protects electrical circuits from short-circuit events and over-current loads, preventing wire insulation overheating and potential damage to connected equipment.

Key Features:

• Push-to-Reset Design: Provides easy visual identification of a tripped breaker and simple one-push reset back to the on position
• Spade Terminal Connection: Features 0.25" male spade terminals for fast, secure wiring connections
• Panel Mount Hardware Included: Comes with a knurled nut and palnut for a clean, professional panel installation using a standard 3/8"-27 nylon mounting bushing
• Ignition Protected: Safe for installation in closed compartments where potentially explosive gases may be present
• Compact Footprint: Slim profile allows installation in space-limited panels and enclosures
• Harsh Environment Construction: Built with high-temperature materials and stainless steel self-locking hardware for durability in demanding environments
• Max Operating Voltage: 50V DC — compatible with 12V, 24V, and 48V DC systems
• Operating Temperature Range: -10°C to 60°C (14°F to 140°F)
• Trip Thresholds: Holds at 100% rated current at 25°C; trips within 1 hour at 150% rated current at 25°C
• 4-Year Warranty: Industry-leading coverage backed by Egis Mobile Electric

The 4711-03 is part of the Egis 4711 series, which pairs with the 4710 series (screw/ring terminal variant) for flexible installation options. Ideal for protecting low-current accessory circuits in boats, RVs, trucks, and other mobile electrical systems.
