Egis Mobile Electric 8730-1111 XD Flex Triple Relay ACR Low Voltage Disconnect with Knob Tinned Wires

The Egis Mobile Electric 8730-1111 XD Flex 1 Triple Relay/ACR/LVD is a compact, programmable high-amp module that combines three independent 500-amp bi-stable relays into a single space-saving unit. Each relay position is individually configurable via dip switches to function as a battery disconnect relay, an Automatic Charging Relay (ACR), or a Low Voltage Disconnect (LVD) — making this one of the most flexible relay solutions available for marine, RV, and powersports electrical systems. This version includes an intuitive front-facing manual override knob and tinned control wires for easy installation.

Key Features:

• 500A continuous current rating per relay with up to 1,500A maximum cranking current

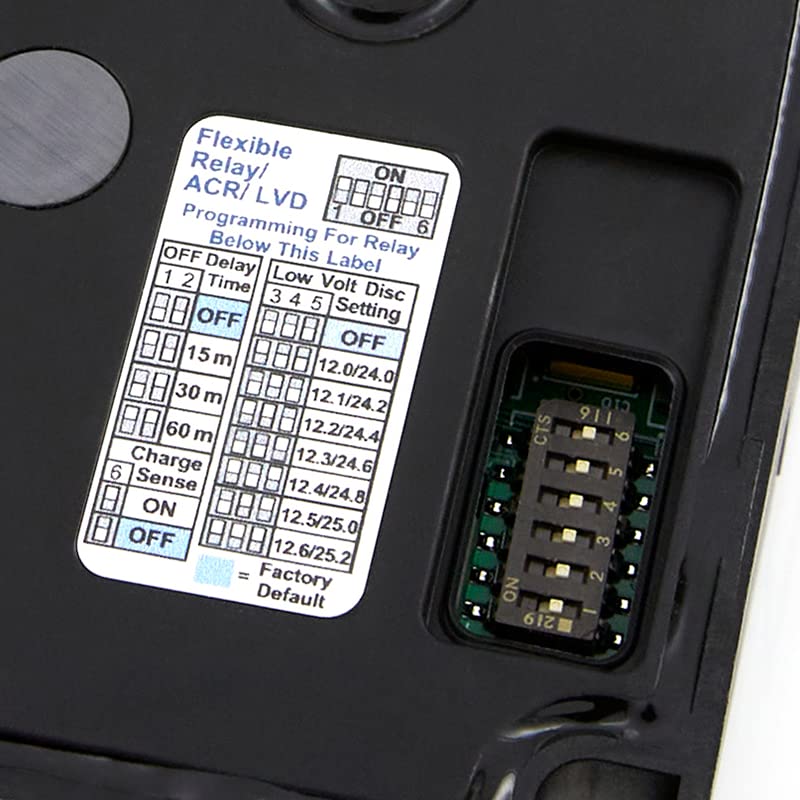

• Fully configurable via dip switches — set each relay independently as a battery disconnect, ACR, or LVD with optional time delay (0–120 seconds)

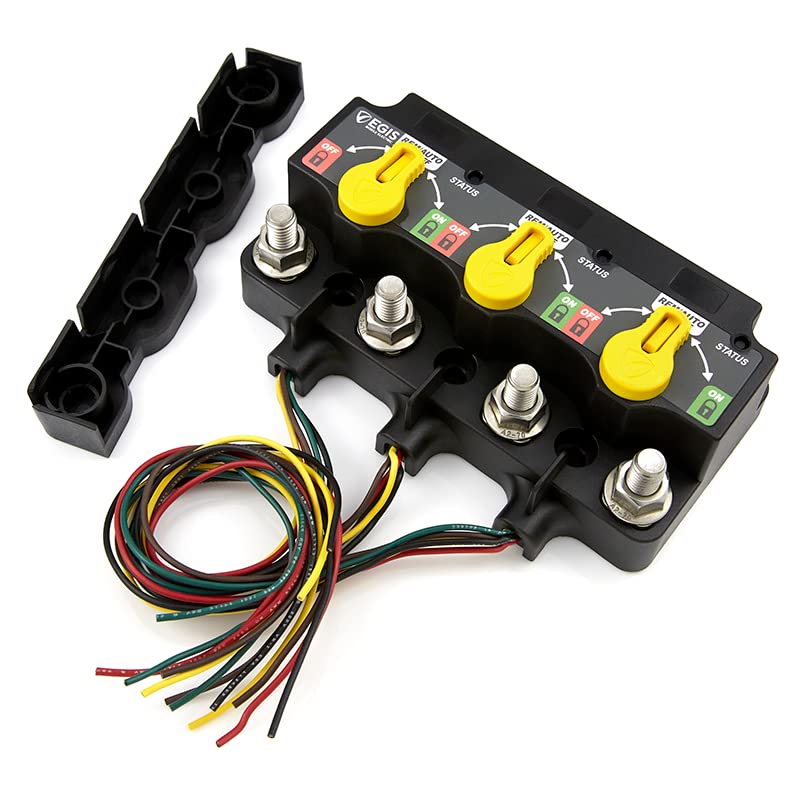

• Front-facing manual override knob with the ability to lock relays ON or OFF for safe servicing
• Sealed to IP67/IP6K9K — waterproof and dust-tight construction with high-temperature rated materials for mounting anywhere
• Supports single and multiple engine installations with dual start/engine isolation inputs
• Remote ON/OFF/Auto inputs allow forced open or close, or fully automatic voltage-based operation
• Local and remote LED indicators for real-time status of each relay
• Fully adjustable open and close voltage set points — compatible with all 12V/24V battery types including Wet Cell, Gel, and AGM
• 35–75% reduction in mounting space and weight versus traditional multi-relay layouts
• Expandable with XD Link and Cross-Link busbars to support 3- or 4-battery systems
• Stainless steel M10 x 1.5 terminal studs and large mounting holes accepting 1/4-20 / M6 hardware
• Operating voltage range: 8–36VDC
• Standby current draw: 1.3mA
• Mechanical switching life: 1,000,000 cycles
• Made in the USA

What's Included:

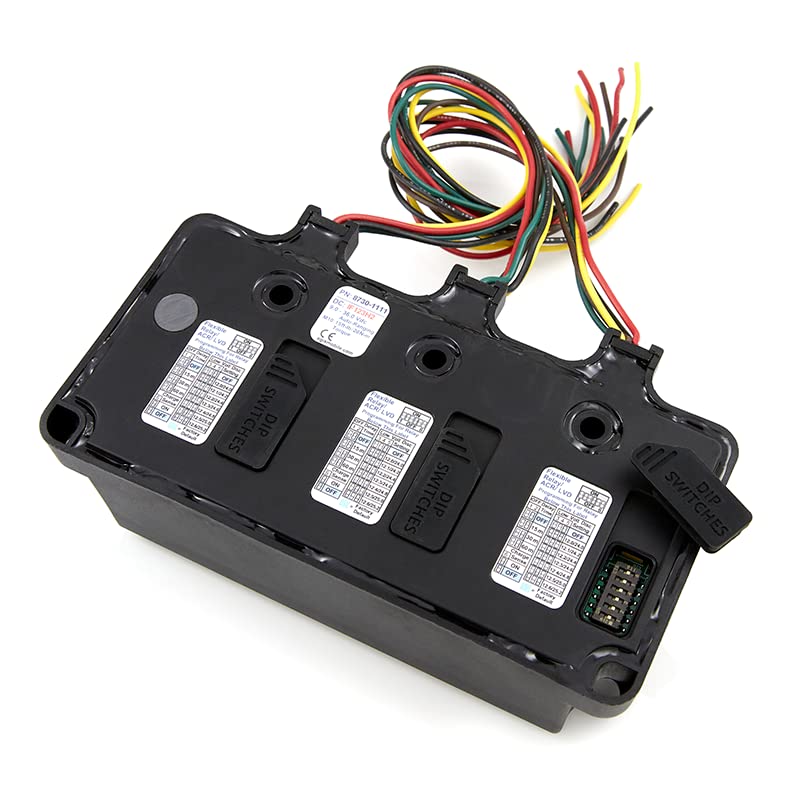

• XD Flex Triple Relay/ACR/LVD module with manual override knob and tinned wires
• 40-circuit label sheet for relay and circuit identification
• Protective terminal cover to prevent inadvertent shorts

Backed by a standard 4-year warranty, the Egis 8730-1111 is an ideal solution for builders and installers looking to consolidate complex multi-battery electrical architectures into a single, ruggedized, easy-to-program module.
