Actisense A2K-FFC-SF NMEA 2000 Straight Micro Field Fit Connector Female

The Actisense A2K-FFC-SF is a straight female Micro Field Fit Connector designed for building and customizing NMEA 2000 network installations. Field Fit Connectors allow cables to be cut to any exact length, eliminating excess cable runs and enabling a clean, professional install tailored to your vessel's layout.

Engineered with marine environments in mind, the A2K-FFC-SF features a compression-style sealing gland that tightens around the cable as the connector is assembled, providing a robust IP67-rated watertight seal when locked. Contacts are brass with gold plating for corrosion resistance and reliable conductivity.

Key Features:

• Straight female configuration — compatible with standard NMEA 2000 Micro (M12) network cables
• IP67 waterproof protection when in locked condition
• Brass, gold-plated contacts for low contact resistance (≤ 5 mΩ)
• Standard M12 "A" polarization — ensures correct mating orientation
• Stainless steel connector screw for corrosion resistance
• PG9 sealing gland accommodates 6–8 mm cable diameter
• Rated 4A / 60V DC — meets NMEA 2000 electrical specifications
• Operating temperature range: -25°C to +90°C (-13°F to +194°F)
• Connector body: PA+GF (glass-filled nylon), black; insert: TPU
• Wire gauge: 22 AWG / 0.34 mm²
• NMEA 2000 approved, RoHS compliant, IEC 61076-2-101 compliant
• Backed by Actisense's 5-year guarantee

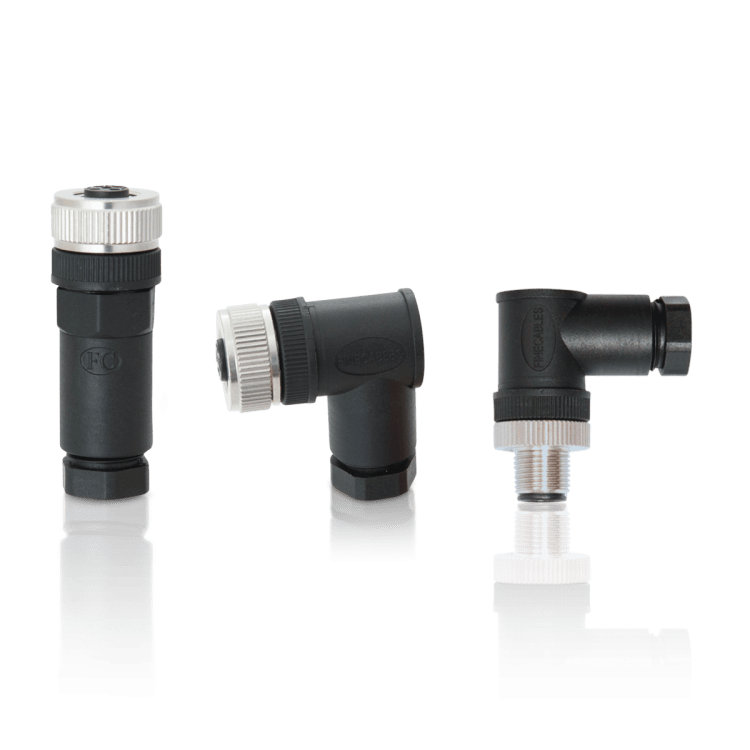

The A2K-FFC-SF pairs with the full Actisense Field Fit Connector range, which includes straight male (A2K-FFC-SM), right-angle female (A2K-FFC-RF), and right-angle male (A2K-FFC-RM) variants, giving installers complete flexibility for any cable routing situation.
