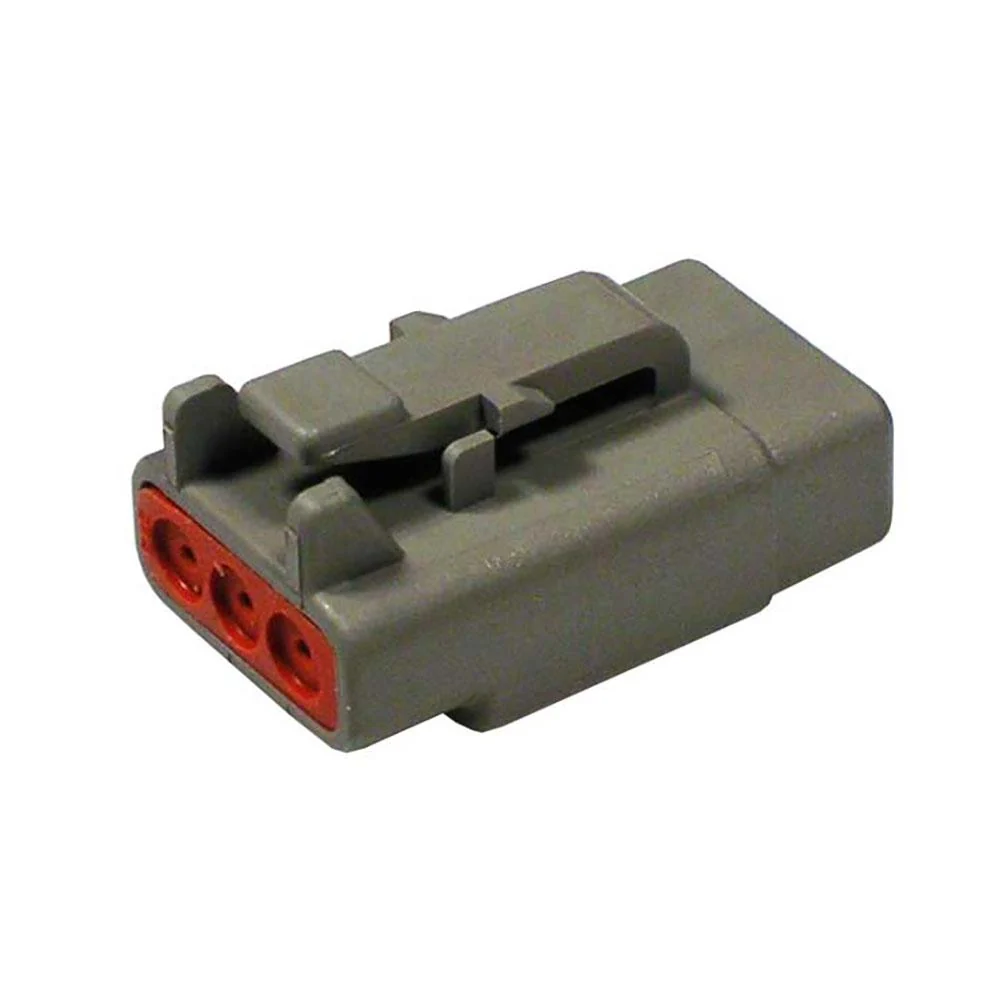

Bluewater DTM06-3S 3-Position DTM Female Connector with Wedge Lock

The Bluewater DTM06-3S is a 3-position DTM series female connector housing designed for secure, weather-resistant electrical connections in demanding environments. Built as a Deutsch-compatible connector, it pairs with the DTM04-3P male connector to form a complete 3-cavity connection and is fully interchangeable with genuine Deutsch DTM series parts.

The DTM series is engineered for reliability in harsh conditions, delivering up to 7.5 amps continuously. The compact rectangular housing is sealed, cable-mount style, and accepts size 20 female socket contacts, making it well-suited for marine, automotive, motorsport, RV, and industrial wiring applications.

Key Features:

• 3-position DTM series female connector housing (gray)
• Deutsch-compatible — fully interchangeable with matching Deutsch DTM parts

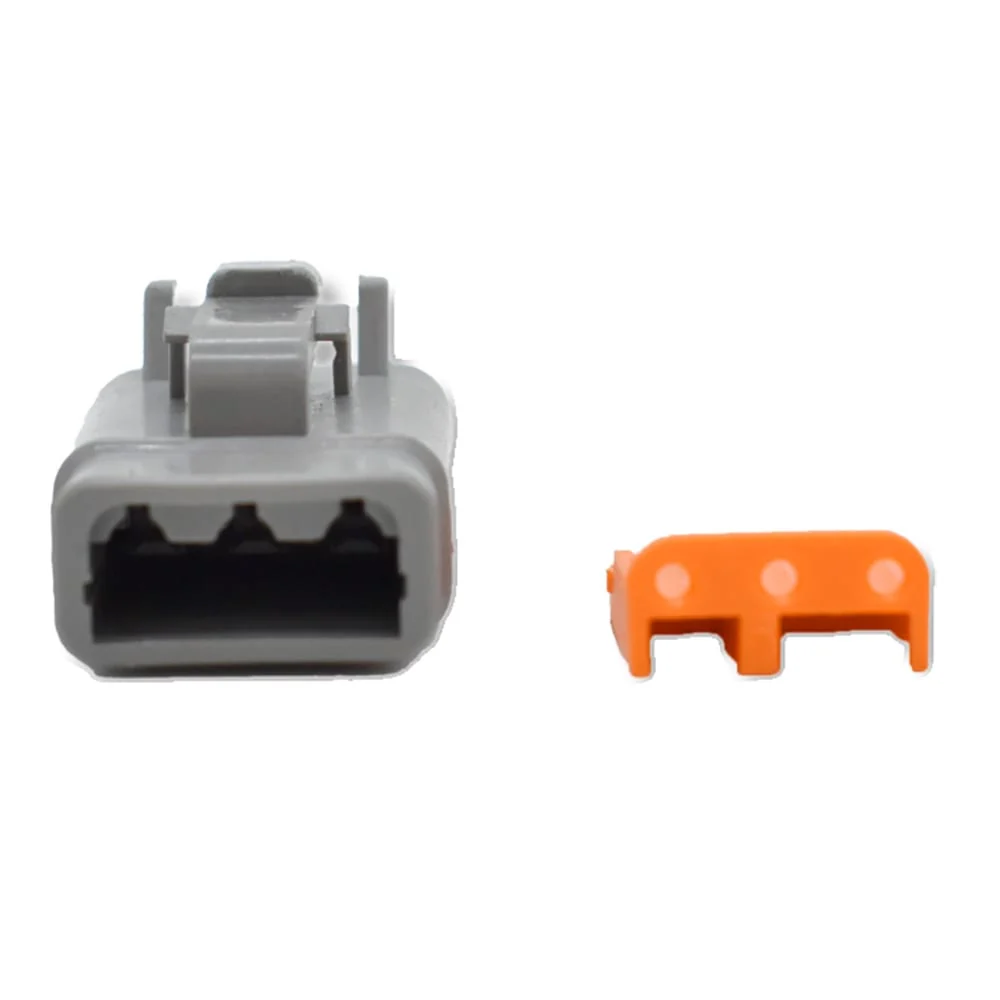

• Includes wedge lock (WM-3S) for secure secondary terminal retention
• Rated for up to 7.5A continuous current
• Sealed, weatherproof design for use in harsh and wet environments
• Corrosion-resistant contacts and rugged plastic housing
• Wire gauge range: 16–20 AWG (machined terminals); insulation range 0.053–0.120 in (1.35–3.05 mm)
• Crimp termination style; free-hanging/cable-mount
• Compatible female contacts: DTM 16–18 AWG Machined Terminal or DTM 18–20 AWG Machined Terminal
• Mating male connector: DTM04-3P (sold separately)

The DTM06-3S is the female housing side of the 3-pin DTM connector pair. Sold individually as a single connector housing with wedge lock included.
