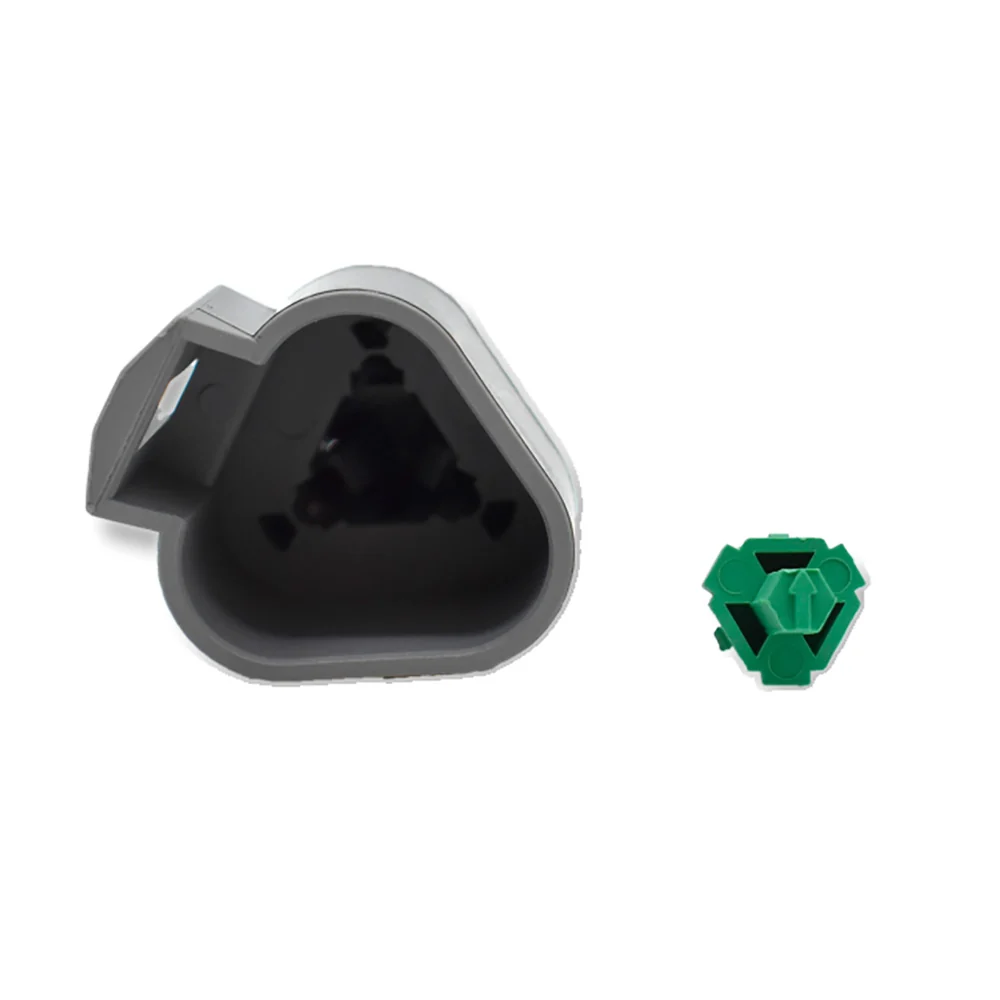

Bluewater DT04-3P 3-Position Male Deutsch Connector with Wedge Lock

The Bluewater DT04-3P is a 3-position male receptacle housing from the Deutsch DT Series, designed for reliable wire-to-wire electrical connections in demanding environments. Fully compatible and interchangeable with genuine Deutsch DT Series parts, this connector pairs with the DT06-3S female socket housing to form a complete 3-cavity sealed connection.

Key Features:

• 3-position (3-pin) male receptacle housing in gray, triangular connector shape
• Wedge lock included for positive terminal retention and vibration resistance
• Fully interchangeable with matching Deutsch DT Series connector components
• Rated up to 13 amps continuous per pin with size 16 contacts
• Environmentally sealed — IP67/IP68 rated for protection against moisture, dust, and contaminants
• Operating temperature range: -55°C to +125°C (-67°F to +257°F)
• Operating voltage up to 250V AC/DC
• Glass-filled polyamide (nylon) housing for durability and heat resistance
• Compatible wire gauge: 14–18 AWG with size 16 machined or stamped crimp terminals (sold separately)
• 8.7 mm contact centerline pitch; mating pin diameter 1.59 mm
• Silicone seals for long-term weatherproofing
• Minimum 100 mating cycles rated

The DT04-3P is ideal for marine, automotive, RV, powersports, and industrial wiring applications where a secure, weather-resistant multi-pin connector is required. Contacts and socket housing are sold separately — a complete male-to-female connection requires the pin housing, wedge lock, pin terminals, socket housing (DT06-3S), socket wedge lock, and socket terminals.
