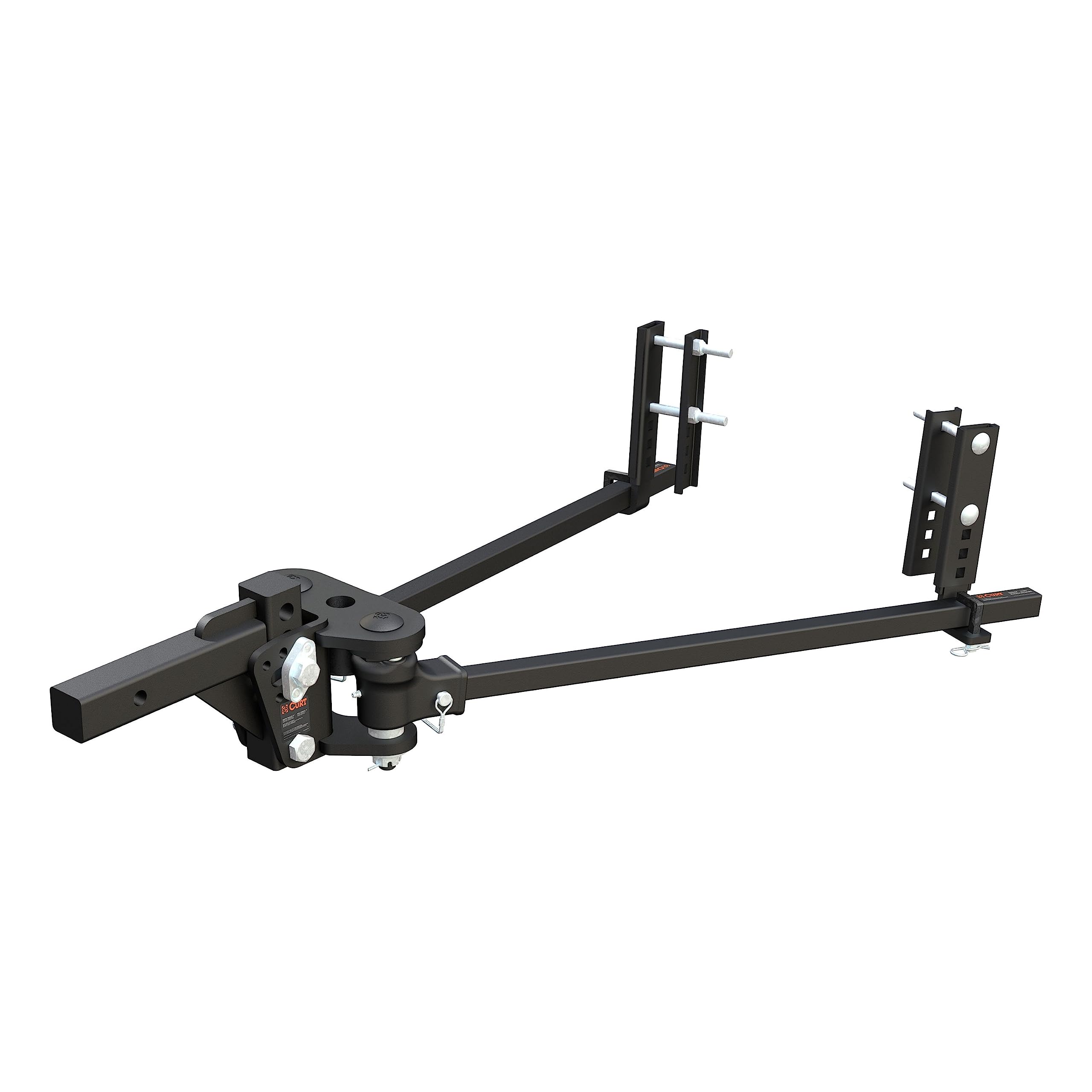

CURT 17499 TruTrack 4P Weight Distribution Hitch with 4x Sway Control 5,000-8,000 lbs

The CURT TruTrack 4P Weight Distribution Hitch is a light-duty trunnion-bar weight distribution system with fully integrated 4-point active sway control, rated for trailers with a gross trailer weight (GTW) of 5,000 to 8,000 lbs and a maximum tongue weight of 800 lbs. Designed for campers, car haulers, livestock trailers, and other heavy-duty towed loads, this hitch delivers confident, stable towing in a single, streamlined unit.

Integrated 4-Point Sway Control:

Unlike standard weight distribution hitches that require a separate sway control add-on, the TruTrack 4P integrates sway resistance directly into the hitch design. Sway is countered at four distinct points — two within the head and two at the spring bar support brackets — keeping the trailer tracking straight without sacrificing smooth cornering. A spring and cam system builds pressure to actively resist lateral trailer movement, then relaxes to allow natural, fluid turns.

Key Features:

• Gross Trailer Weight: 5,000–8,000 lbs GTW
• Tongue Weight Capacity: 800 lbs maximum
• Receiver Size: 2-inch shank (flippable for drop or rise)
• Spring Bar Type: Trunnion-style forged steel, 35-9/16 inches in length
• Sway Control: 4-point integrated — no separate sway bar needed
• Head Construction: Welded head with cast steel pieces for solid spring bar attachment
• Tilt Adjustment: Interlocking nuts with six preset holes allow precise angle adjustment without disassembling the hitch head
• Max Trailer Frame Height: 6 inches
• Finish: Carbide black powder coat with black-oxide-plated cams and stainless steel balls for corrosion resistance
• Warranty: Limited lifetime (1-year on parts and finish)
• Fits: Virtually all A-frame trailers

Note: Trailer ball is not included.

The adjustable support brackets hold the trunnion spring bars in place both laterally and vertically — eliminating the unpredictability of traditional spring bar chains. Setup is simplified by externally accessible interlocking nuts and six preset tilt-angle positions, making this one of the fastest weight distribution hitches to install and adjust on the market. Backed by a limited lifetime warranty, the CURT 17499 TruTrack 4P is built for dependable, long-lasting towing performance.
