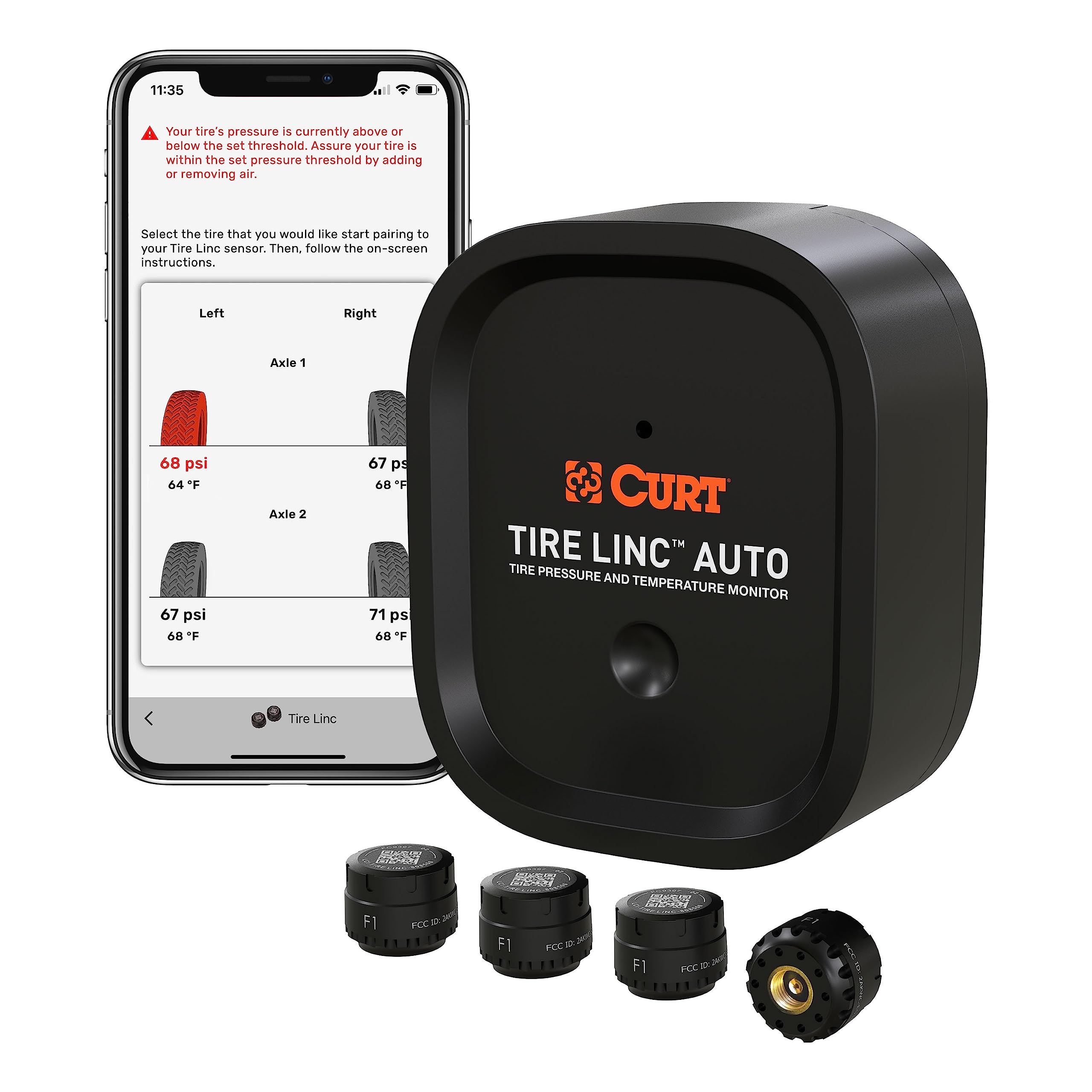

CURT 57009 Tire Linc Auto Advanced TPMS Tire Pressure Monitoring System

The CURT 57009 Tire Linc Auto Advanced TPMS is a Bluetooth-connected tire pressure and temperature monitoring system designed for trailers, RVs, and other towed vehicles. The kit delivers real-time tire data directly to your smartphone, eliminating the need for dedicated dashboard monitors or manual pre-trip checks.

Key Features:

• Actively monitors tire pressure and temperature in real-time via Bluetooth
• Integrates with the OneControl® Auto app on iOS and Android for push notifications and customizable alerts
• Advanced repeater technology amplifies sensor signals for reliable long-range connectivity
• Kit includes 4 sensors; expandable to monitor up to 20 tires simultaneously
• Additional sensors available separately (CURT #57009/57011) for extra axles or larger rigs
• IP67-rated repeater and sensors — dustproof and waterproof up to one meter
• Rechargeable 3.7V 5000mAh lithium battery provides up to 60 hours of active use
• Automatically enters low-power mode when the vehicle is stationary to preserve battery life
• Can be permanently wired using the included splice-in wiring harness
• Portable design allows the system to be moved between multiple trailers
• Easy do-it-yourself installation — no professional tools required
• Sensors include replaceable CR1632 batteries
• Repeater and dock assemblies included in the box

Compatible with 5th-wheel RVs, travel trailers, boat trailers, enclosed trailers, and agricultural or utility trailers, the Tire Linc Auto TPMS is an ideal safety upgrade for any towing application. Alert Indicator accessory is sold separately.
