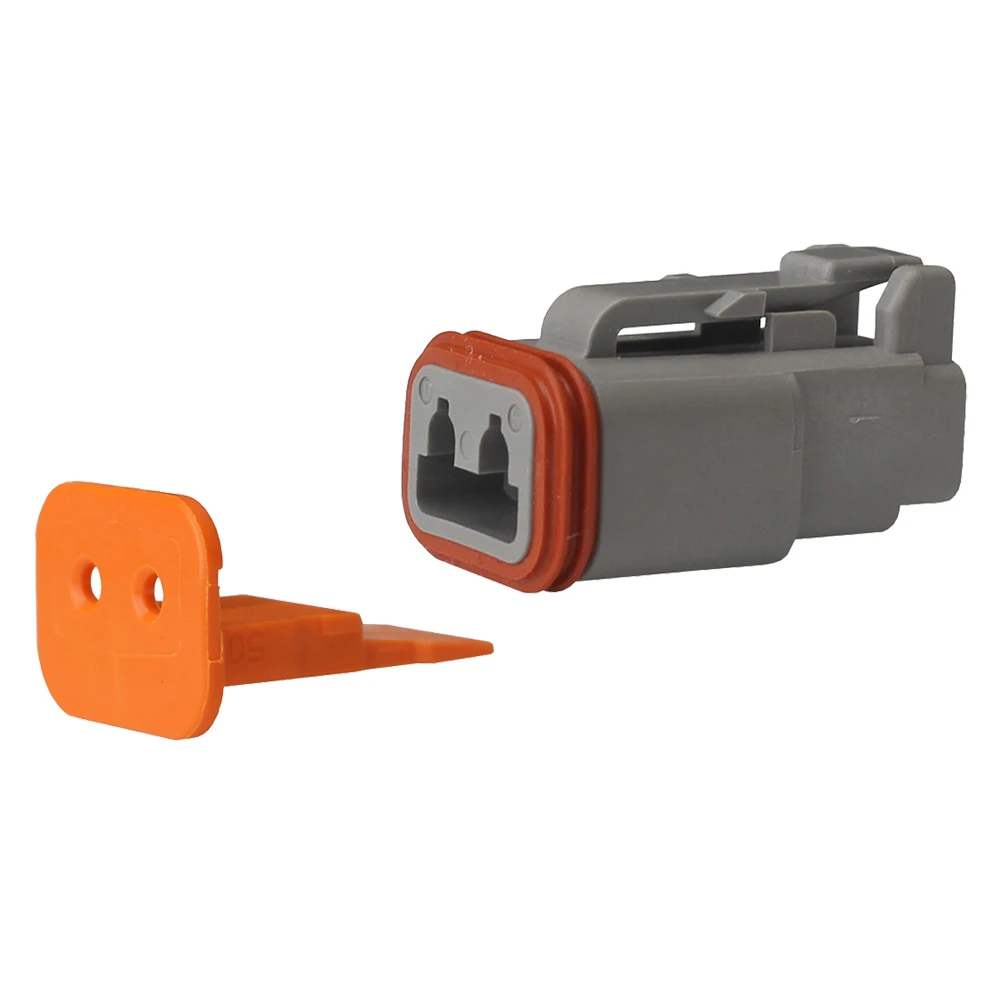

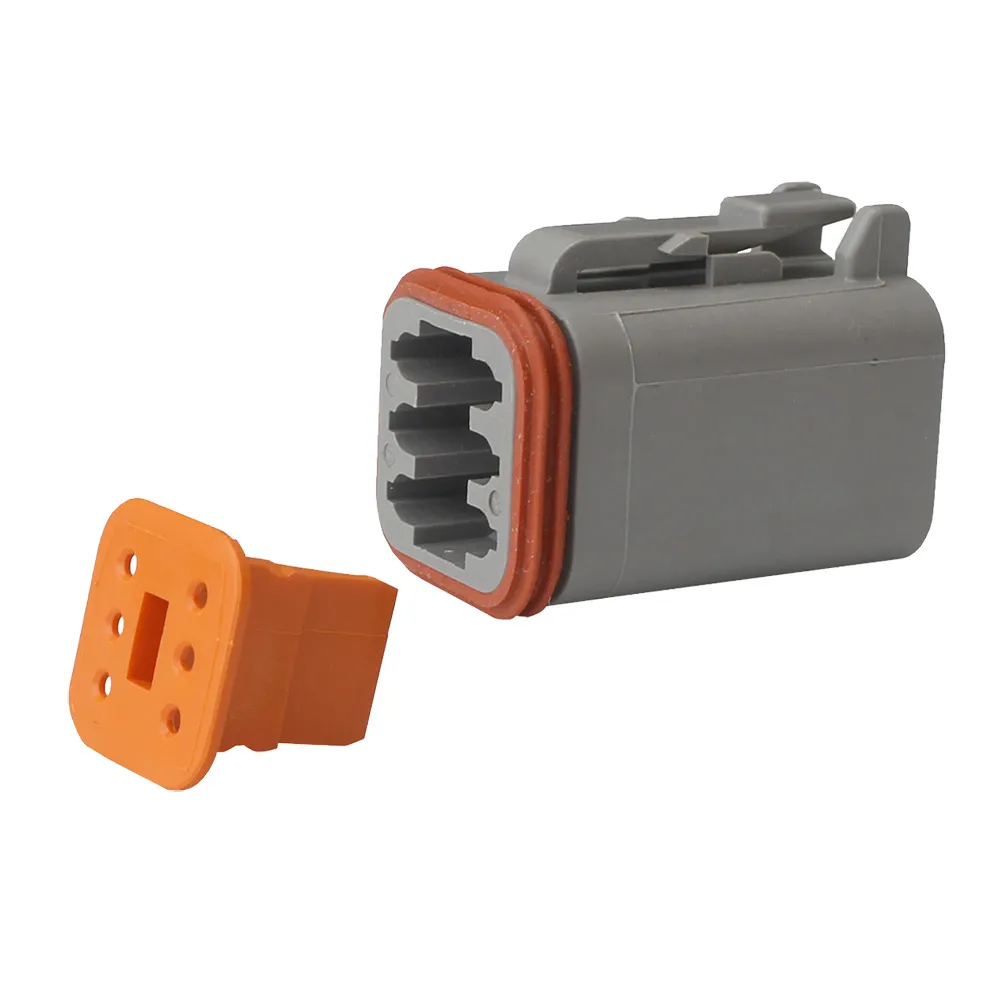

Pacer Performance Deutsch DT Connector Plug & Wedge Lock Kit

The Pacer Performance Deutsch DT Connector Plug and Wedge Lock Kit line gives you environmentally sealed wire-to-wire electrical connections. These DT series connector housings suit automotive, marine, powersports, RV, off-road and equipment wiring. Each kit pairs a rugged plug housing with a matching wedge lock. The connections resist water, vibration and shock.

Key Features:

• Environmentally sealed: Redundant silicone seals help keep moisture and contaminants out of the connection.
• Wedge lock retention: The wedge lock keeps contacts aligned and held in place.
• Durable housing: Rectangular plug housing is made of glass-fiber-reinforced plastic.
• Size 16 contacts: Accepts size 16 contacts (13 Amp) for 20-14 AWG wire.
• Easy to work with: Contacts can be inserted and removed by hand. The connectors are simple to install, connect and disconnect, which suits field repairs and upgrades.
• Wide temperature range: Rated for -55°C to 125°C operation.
• Compliance: IP67 ingress protection, EU RoHS/ELV compliant, and UL-94 recognized.

Please note: These kits contain the housing and wedge lock only. Pins and sockets (contacts) are sold separately.

Pacer Performance DT connector kits are a dependable choice for lighting, sensor, accessory and harness wiring. They are built for vehicles and equipment that see harsh conditions.
