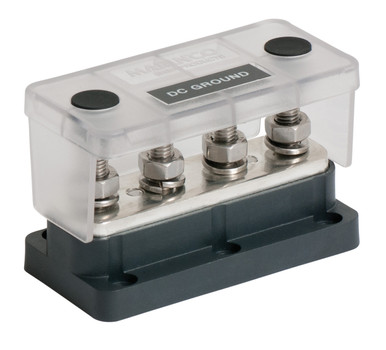

BEP Marine Pro Installer Heavy-Duty Busbar Terminal Blocks & Bus Bars

The BEP Marine Pro Installer Heavy-Duty Busbar line gives boats a tidy, durable way to bring several heavy-gauge cables together at one point. These bus bars, also called terminal blocks or power distribution blocks, suit battery, charging and DC distribution wiring. They reduce cable clutter and make the electrical system easier to service.

Key Features:

• Tinned copper conductors: Tinned CDA102 copper gives low electrical resistance and resists corrosion in the marine environment.
• Stainless steel hardware: Stainless steel studs and screws are paired with nickel-plated brass nuts. This combination helps prevent thread galling if a nut is over-tightened.
• Clear polycarbonate cover: The cover insulates and protects on three sides, which lowers the risk of accidental short circuits.
• Removable side skirts: Snap-out skirts add cable entry points where cable runs are tight.
• Radiused bar ends: The rounded ends let large cable lugs attach at a range of angles, which improves routing.
• Label recess: A recess on the cover holds printed circuit labels up to 1/2 inch (12.7 mm) wide.
• Rugged base: A high-temperature, fiber-reinforced plastic base adds strength and chemical resistance.
• Modular design: A common interconnection height lets the bars link with other Pro Installer busbars and fuse holders. Compact footprints save space, and extra mounting holes hold the bar securely.

Built for the harsh conditions aboard boats, the Pro Installer line suits professional installers and DIY boat owners who want a clean, reliable, scalable electrical installation.
