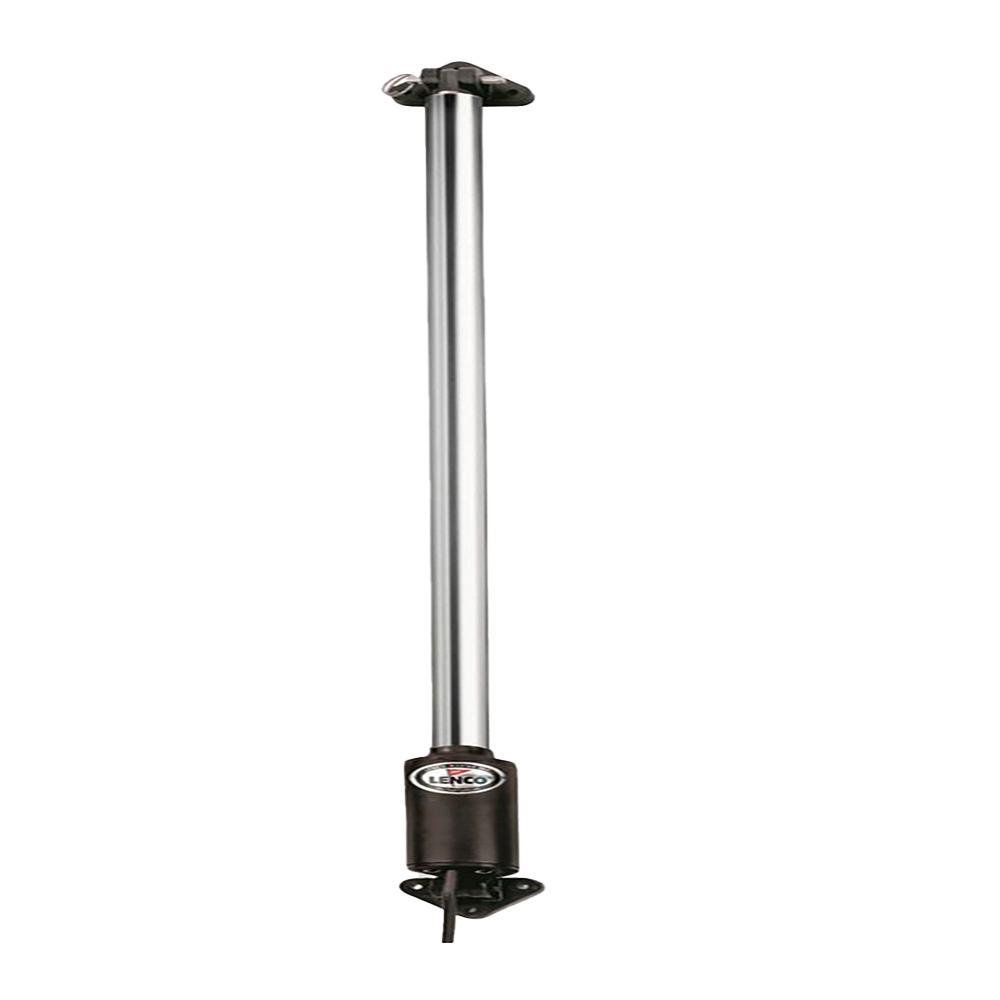

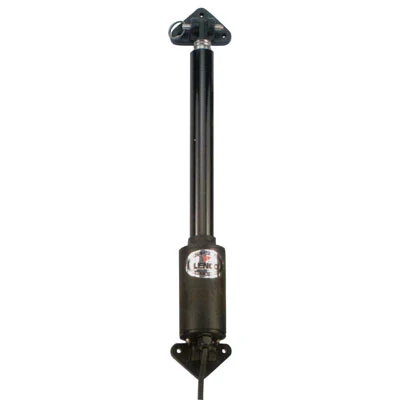

Lenco Electric Hatch Lift Stroke

Lenco Electric Hatch Lifts are marine electric hatch actuators. They raise and lower heavy hatches, engine covers, decks and electric consoles at the push of a button. Each lift has an inline motor that delivers over 500 lbs of force. The clutchless ball screw design holds the hatch in position without drifting. It also never binds, and it runs in sync when two lifts are used on one hatch.

Key Features:

• Inline motor design delivers over 500 lbs of lifting force
• Clutchless ball screw design that won't drift, never binds and runs in sync in dual-lift applications
• Powdered metal gears for strength and precision
• Stainless steel ram locks in any position
• Built from non-corrosive materials and waterproof for marine use
• O-ring sealed at 100 psi
• CE certified and ABYC compliant
• High-impact, corrosion-proof mounting brackets with stainless steel pull pins for manual operation during a power failure
• Supplied with 2 ft leads and Deutsch connectors
• Available in 12 V DC and 24 V DC versions, with a range of stroke lengths

Lenco Electric Hatch Lifts install with a single power cable and are easy to mount. They are built to handle the harsh marine environment and give years of reliable service. Choose the voltage and stroke length that suits your hatch.
