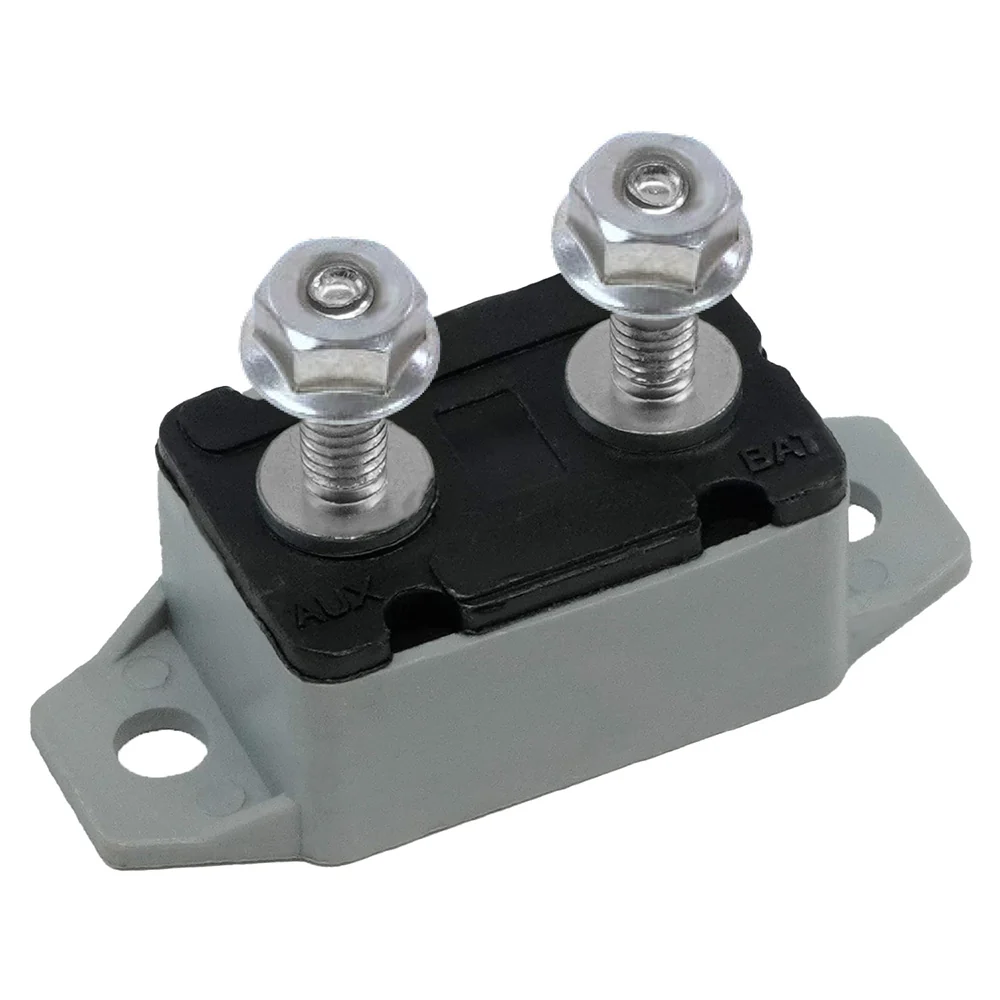

Egis Mobile Electric Short Stop Surface Mount Circuit Breaker

The Egis Mobile Electric Short Stop surface mount circuit breaker is a compact, resettable breaker. It protects low- and medium-amperage DC circuits in marine, vehicle, RV and other mobile electrical systems. It guards against short circuits and over-current loads, which helps keep wire insulation from overheating.

Key Features:

• Resettable protection: Type III manual reset (push to reset), so you don't need to replace fuses.
• 12V and 24V systems: 28 VDC maximum voltage rating.
• Surface mount design: A reinforced mounting tab holds the breaker securely in place.
• Weather resistant: Resists dust and water intrusion for dependable protection over the life of the installation.
• Ignition protected: Safe to install in closed compartments where explosive gases may be present.
• Harsh-environment build: Resists shock and vibration, which suits marine and vehicle electrical systems.
• Optional protective cover: Egis offers a separate cover (P/N 8031B) that guards against accidental shorts from the breaker studs to other positive studs or ground points.

The Short Stop line comes in a range of amperage ratings. Each rating has its own color coding, so you can match the breaker to the circuit you need to protect.
