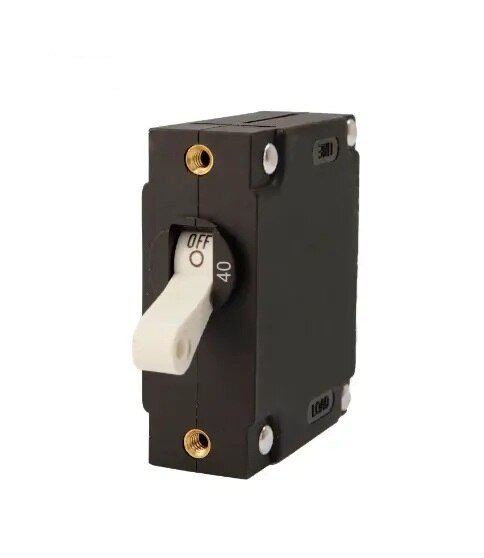

Egis Mobile Electric A-Series Toggle Panel Mount Circuit Breaker Single Pole AC/DC

The Egis Mobile Electric A-Series toggle panel mount circuit breaker is a single pole, AC/DC rated magnetic-hydraulic breaker. It combines an on/off switch and circuit protection in one device, so you can control and protect a circuit from the same panel. A-Series breakers are widely used in marine electrical panels. They also suit RV, vehicle and other 12 to 48 volt DC and AC systems.

Key Features:

• Circuit protection: Guards against short circuits and over-current loads, helping prevent wire insulation from overheating and being destroyed.
• AC and DC rated: Covers a wide range of system needs. It is rated up to 277 Vac / 80 Vdc and supports 12 and 24 Vdc systems. It also provides protection for 36 and 48 Vdc systems.
• Toggle-style actuator: Switches on and off easily. The toggle position and ON/OFF marking show at a glance whether the circuit is open.
• High endurance: Delivers 6,000 electrical and manual switching cycles at full current.
• High interrupt capacity: Protects circuits connected to large paralleled battery banks with significant available power.
• Durable construction: Built from high-temperature materials with stainless steel self-locking hardware for reliable long-term connections.
• Easy installation: Fits standard panels that accept A-Series and C-Series magnetic-hydraulic circuit breakers. Mounting screws are included.
• Certified: UL 1077 recognized.
• Warranty: Backed by a 4-year warranty.
• Optional accessories: Toggle guards help prevent accidental switching, and panel plugs fill unused panel slots.

Available in multiple variants, each with the same A-Series construction and performance, so you can match the breaker to your panel and circuit requirements.
