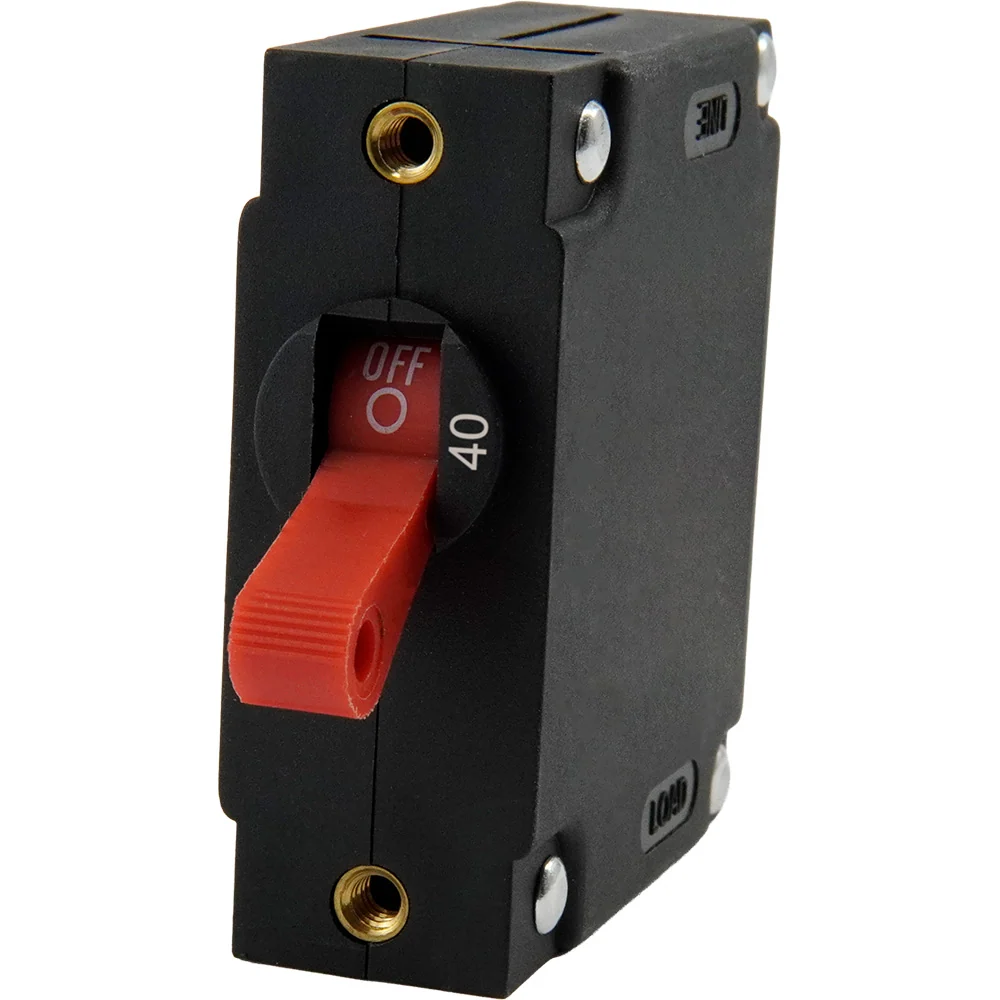

Egis Mobile Electric A Series Single Pole Toggle Panel Mount Circuit Breaker

The Egis Mobile Electric A Series single pole toggle circuit breaker is a panel mount magnetic-hydraulic breaker. It combines an on/off switch with circuit protection in one device. It protects wiring from short circuits and overcurrent loads, which helps prevent overheated wire insulation. It suits marine electrical panels and other DC and AC systems.

Key Features:

• Magnetic-hydraulic design: Gives switching and circuit protection in a single device.
• AC and DC rated: Covers a wide range of system applications. The voltage rating supports 12 and 24 Vdc systems and gives protection for 36 and 48 Vdc systems.
• High interrupt capacity: Protects circuits connected to large paralleled battery banks that have significant available power.
• Durable: Rated for 6,000 switching cycles at full current.
• Toggle-style actuator: Makes on/off control easy.
• Panel mount: Fits standard panels that accept A-Series and C-Series magnetic-hydraulic breakers.
• Stainless steel self-locking hardware: Keeps connections reliable over the long term.
• UL 1077 recognized: Meets this regulatory standard for supplementary protectors.

Optional A-Series toggle guards help prevent accidental switching. Optional panel plugs fill unused panel slots.
