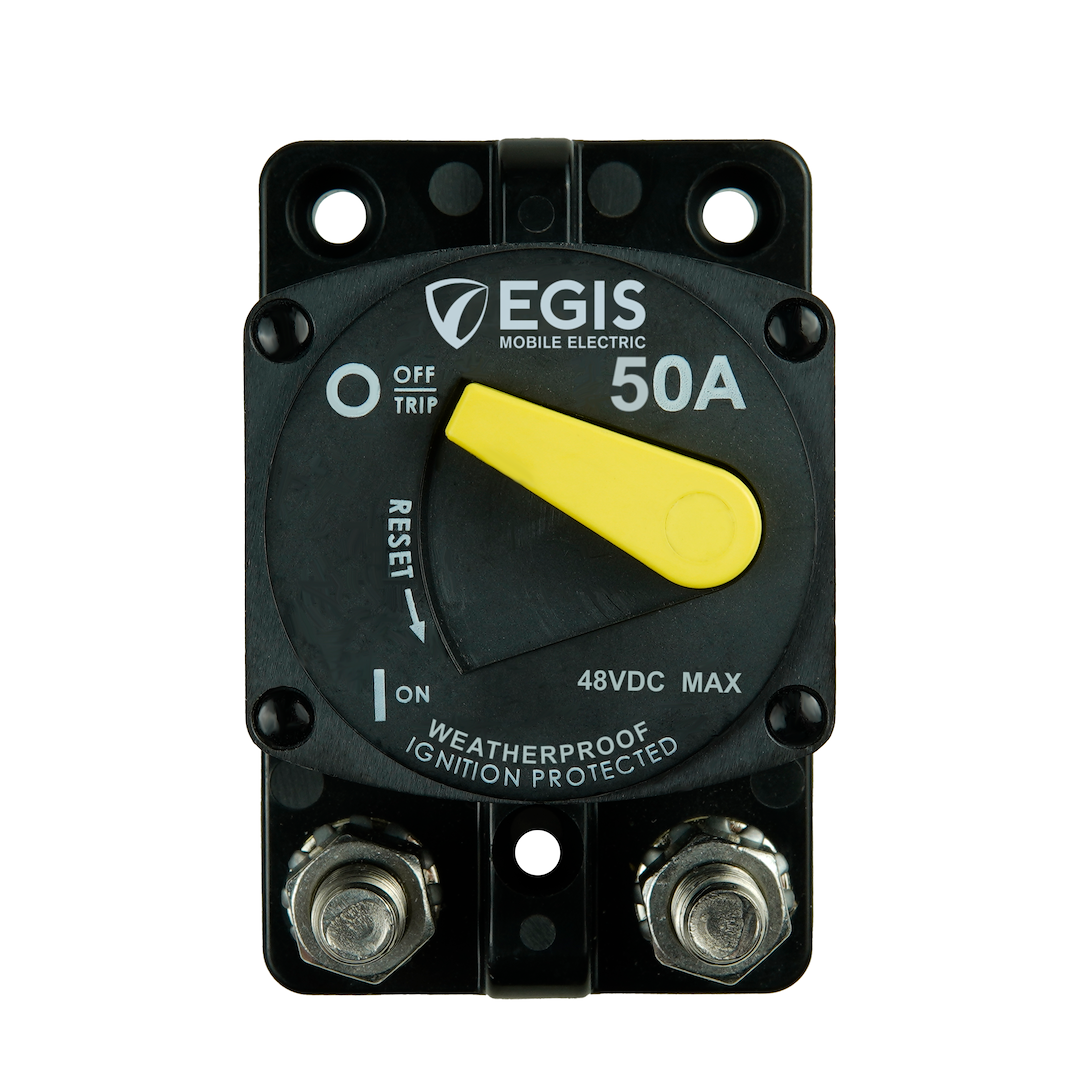

Egis Mobile Electric Series Surface Mount Circuit Breaker

The Egis Mobile Electric Series Surface Mount Circuit Breaker line gives marine, automotive and heavy-duty DC electrical systems resettable overcurrent protection. Each breaker is a switchable circuit breaker with a surface-mount, circular-style design. It guards circuits against short circuits and overload, and it also works as a manual on/off switch for isolating and servicing a circuit.

Key Features:

• Protection and switching in one unit: Automatic circuit protection and manual on/off switching are combined in one compact breaker.
• Weatherproof construction: The sealed housing is rated IP66 against dust and water intrusion.
• High-visibility lever: A bright yellow paddle shows when the circuit has opened. It is also used to reset the breaker to the on position.
• 48 VDC rating: The rating supports 12 and 24 VDC systems and also protects 36 and 48 VDC applications.
• Interrupt capacity: Interrupt capacity is designed to meet SAE J553 and ABYC E-11 requirements. This helps protect circuits connected to large paralleled battery banks.
• Ignition protected: The breakers are suitable for installation in closed compartments where explosive gases may be present.
• Harsh-environment hardware: Stainless steel, self-locking terminal hardware resists corrosion and vibration.
• Flame-retardant housing: The housing has a UL 94 V0 flammability rating.
• Wide temperature range: The operating range is -40°F to 185°F (-40°C to 85°C).

These breakers suit boats, RVs, utility and off-highway vehicles, and battery-bank installations. Each model in the line has its own amperage rating, so choose the variant that matches your circuit's requirements.
