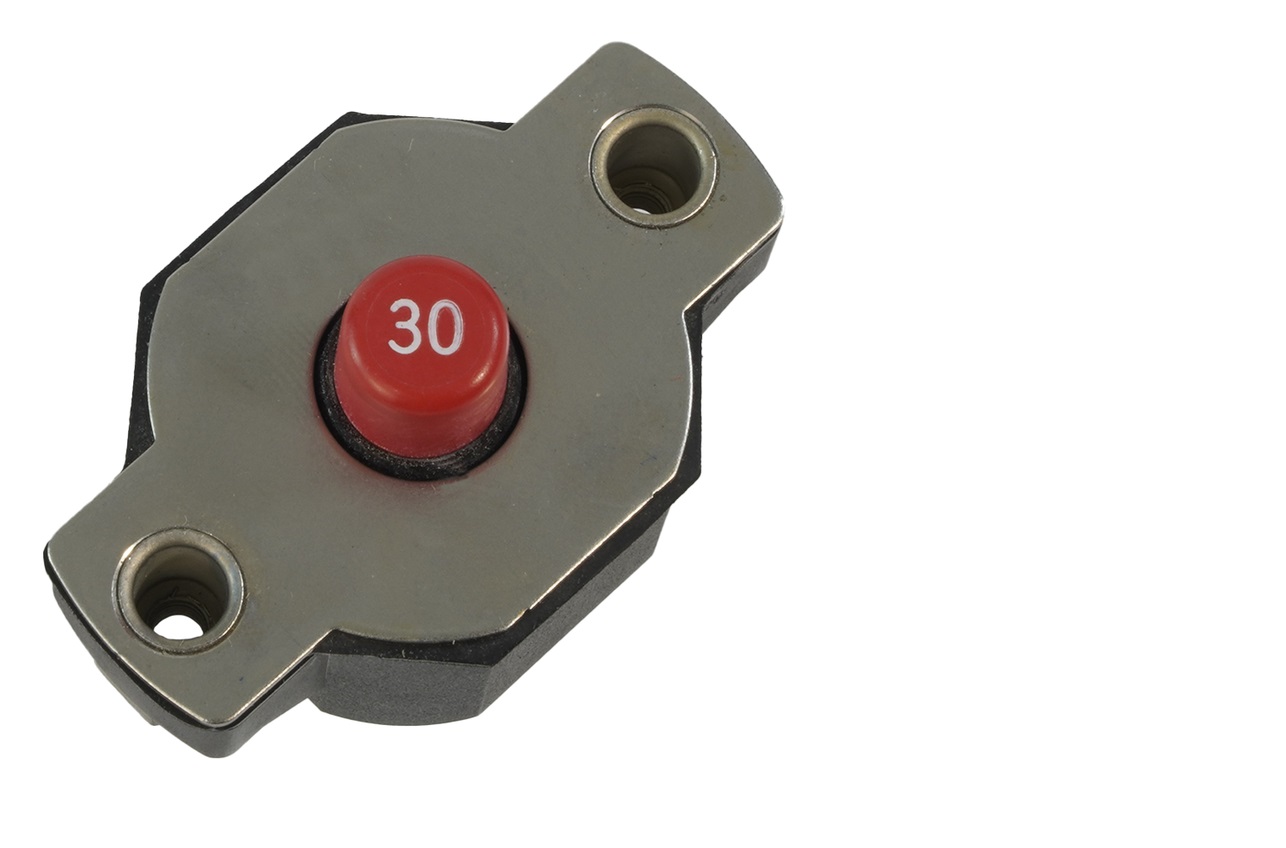

Egis Mobile Electric Medium Duty Push Button Circuit Breaker Reset Only

The Egis Mobile Electric Medium Duty Push Button Circuit Breaker (reset only) gives dependable overcurrent protection for 12 V and 24 V DC systems. It protects wiring from short circuits and overloads, which can overheat wire insulation. It is a push-to-reset breaker, so you can use it in place of a fuse and reset it without replacing anything. It also works as a manual on/off switch. That makes it useful for isolating and servicing load circuits on boats, vehicles, and other mobile equipment.

Key Features:

• Push-button reset: Restores the circuit after a trip. It combines automatic circuit protection with manual switching.
• 32 Vdc rating: Supports both 12 Vdc and 24 Vdc applications.
• High interrupt current: Rated for 3,000 amps at 32 Vdc. It can protect circuits connected to large paralleled battery banks. It meets ABYC E-11 interrupt requirements.
• Trip-free design: The breaker cannot be forced on during a fault condition.
• Ignition protected: Safe to install in closed compartments where explosive gases may be present.
• Sealed construction: Resists dust and water intrusion to help protect the circuit over the life of the installation.
• Harsh-environment design: Resists shock and vibration, suited to marine and vehicle electrical systems.
• Compact body: Can be mounted close together for dense circuit protection panels. It installs with a standard 10-32 mounting nut.
• Cycling endurance: Rated for 100 cycles.
• Warranty: Backed by a 4-year manufacturer warranty.

Egis Mobile Electric builds circuit protection and power management components for marine, RV, and heavy-duty vehicle electrical systems. This medium duty breaker is a rugged, resettable alternative to a fuse in panels, battery circuits, and accessory feeds.
