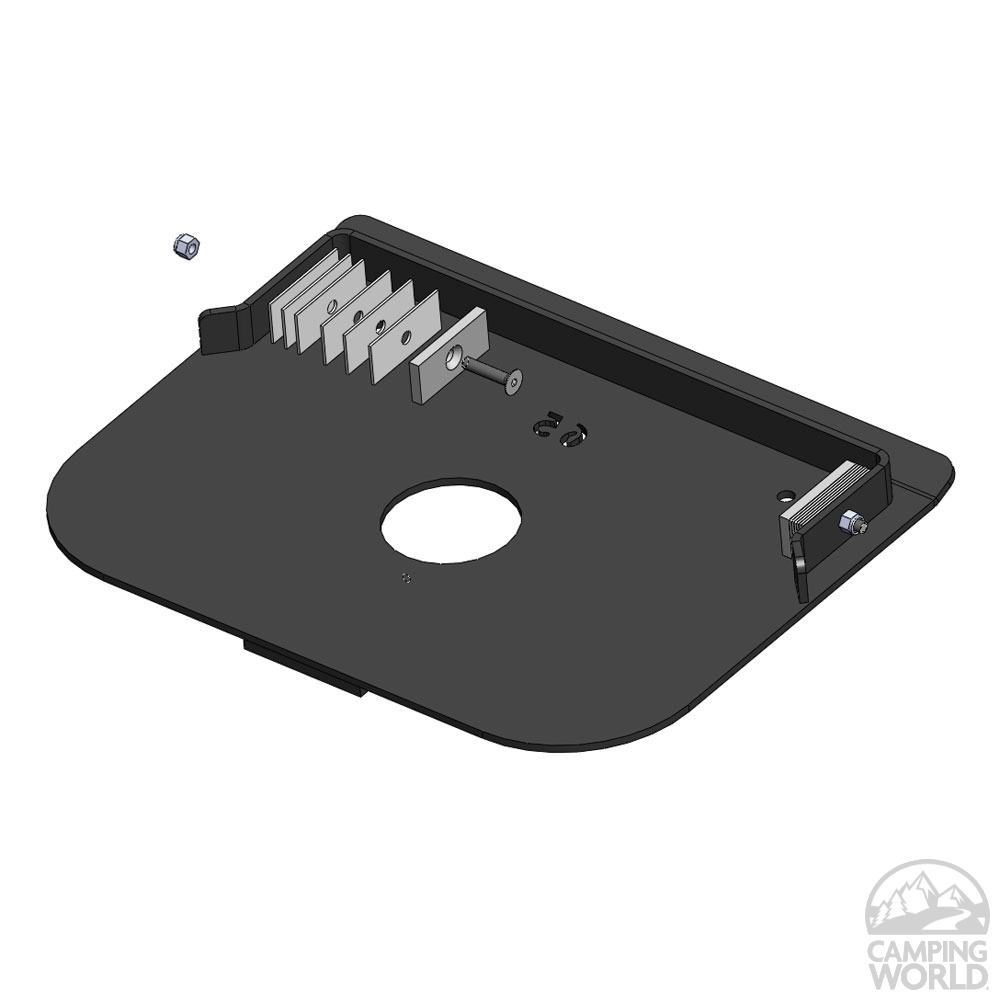

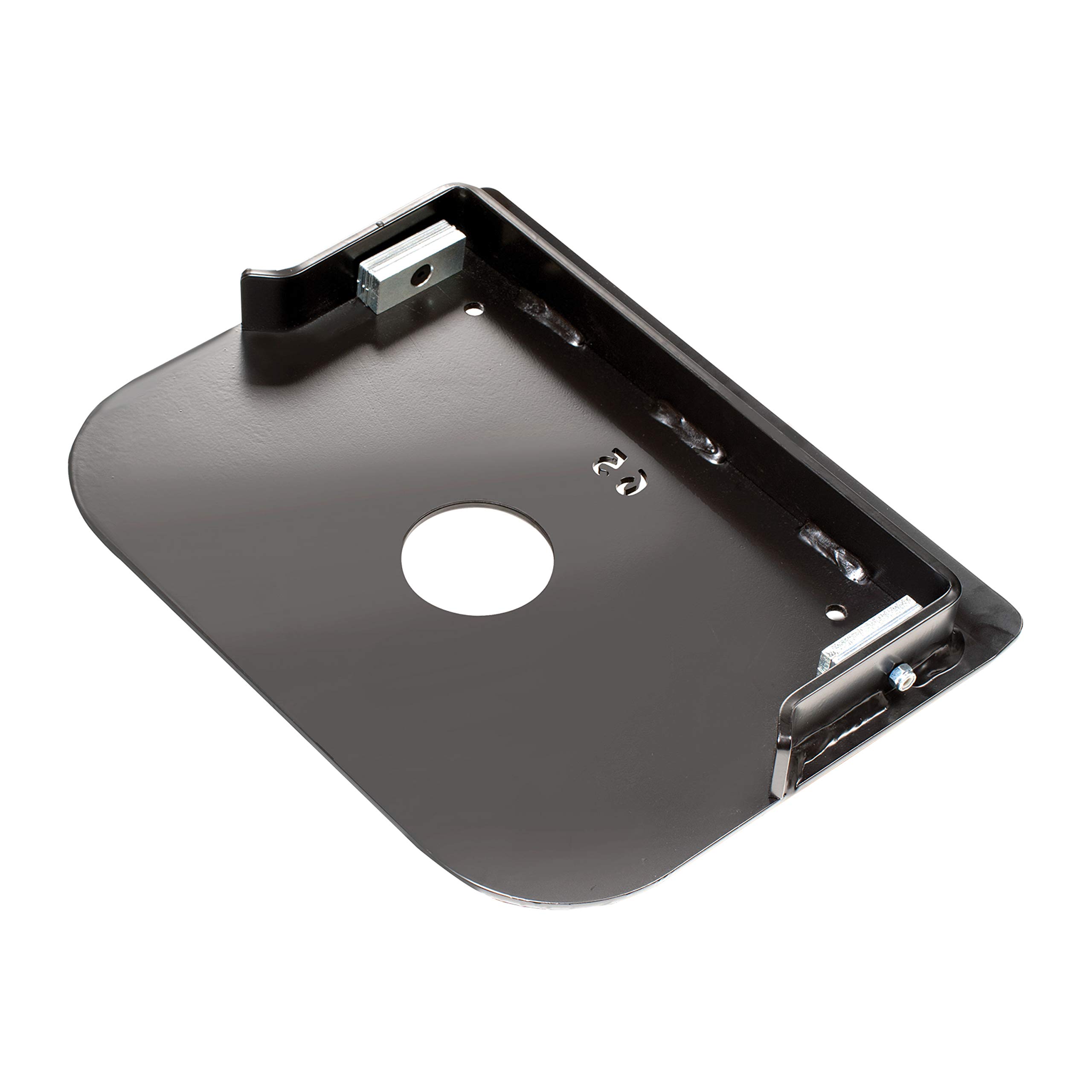

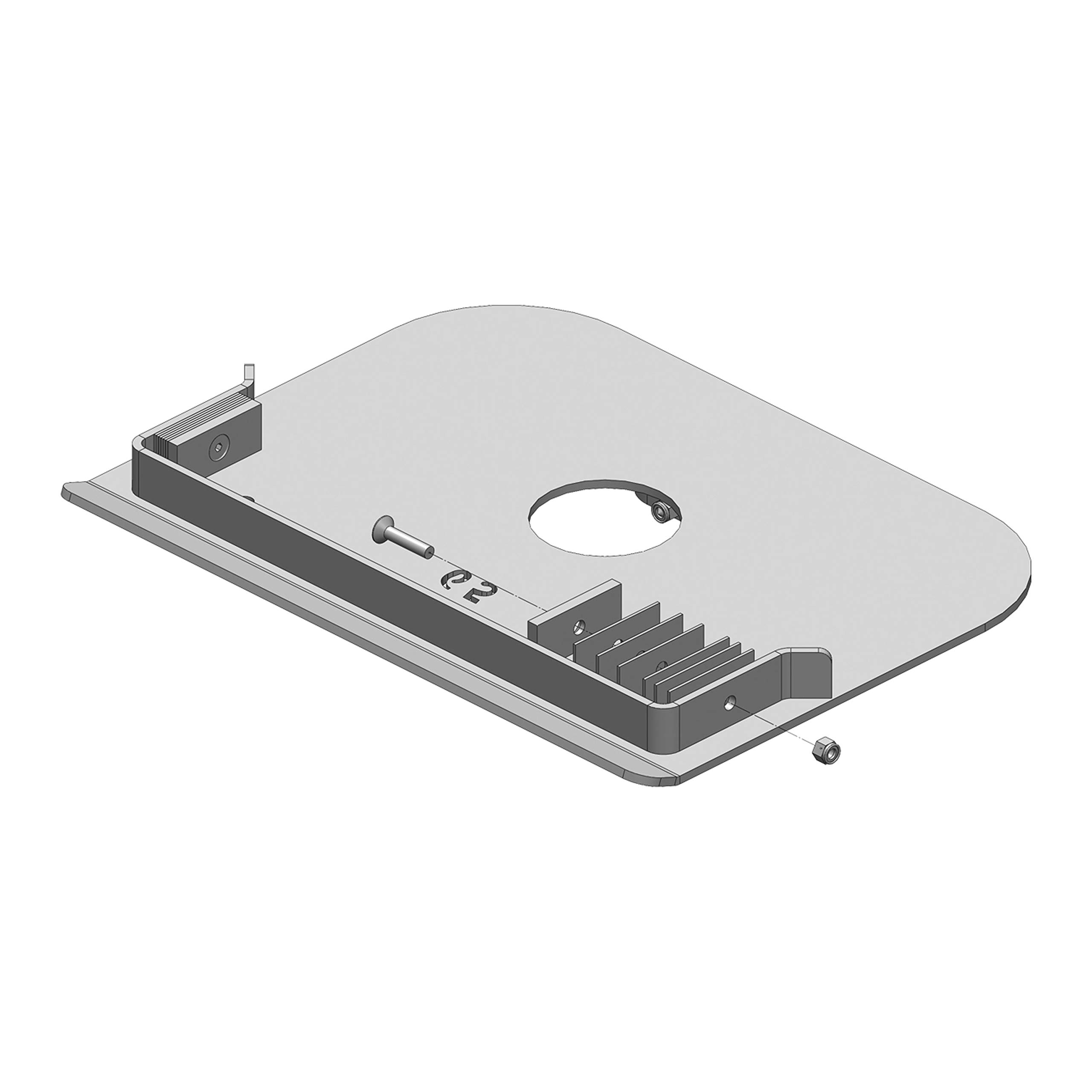

"Capture Plates are a required component of the SuperGlide hitch
system. When the trailer is hooked up to the hitch, the Capture
Plate?s wedge isolates the king pin from turning in the fifth wheel
plate, causing the Cam Assembly to activate and allowing the
SuperGlide to move as turns are being made. Part #3365 fits Fabex
and Lippert model numbers 500's, 765, 770, 1621, 1621 HD, 1116,
& 1716.
Most applications slip over the king pin and are held in place by a
set screw. Follow the instructions below to determine your correct
Capture Plate.
1) Determine if manufacturer name and model number located on your
pin box are one of the options shown above.
2) To ensure correct fit, make the necessary A, B and C
measurements:
A: Measure the king pin plate from side-to-side. This is the
most
important measurement. Be sure that this measurement is no
more
than 1/16? less than the measurement listed which is 12 3/4""
through 13 1/2"" and 14"" for part #3365.
B: Measure from the leading edge of the king pin to the leading
edge of
the king pin plate. Part #3365 accommodates 2 9/16"" through
4"".
C: Measure from the rear edge to the leading edge of the king pin
plate. Part #3365 accommodates all sizes."
