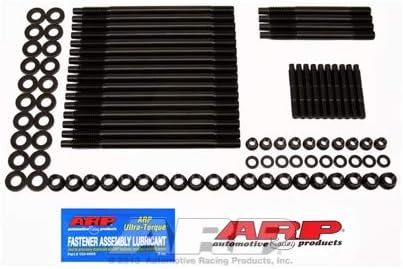

ARP 234-4316 High Performance Cylinder Head Stud Kit 8740 Chrome Moly

The ARP 234-4316 is a high-performance cylinder head stud kit engineered for serious engine builders who demand maximum clamping force and reliability. Manufactured from premium 8740 chrome moly steel and heat-treated to 200,000 psi, these studs deliver exceptional strength and durability for high-performance and competition applications.

Key Features:

• Premium 8740 chrome moly alloy rated at 200,000 psi tensile strength
• 12-point head design for secure engagement and easy installation
• Vertical rack heat-treating ensures complete and consistent heat penetration
• Centerless ground for precise concentricity and perfect alignment
• Thread rolled after heat-treat for 10x better fatigue strength
• Undercut shorter studs equalize stretch for consistent clamping force
• Includes hardened parallel-ground washers for even load distribution
• Wide-area flanged head eliminates need for valve train removal during retorquing

Why Choose Studs Over Bolts:

Head studs provide superior clamping accuracy compared to bolts because they stretch only on the vertical axis when torqued, rather than being twisted during installation. This results in more consistent torque loading and better head gasket sealing. Studs also make engine assembly easier by allowing the cylinder head and gasket to glide into perfect alignment.

Installation Notes:

Install studs finger-tight in a relaxed mode—never crank them in using a jammed nut. Apply torque to the nut only, allowing the stud to stretch vertically. Always re-torque after initial engine run-in to compensate for head gasket compression.

Each ARP stud is stamped with the ARP logo as your assurance of quality and is backed by the company's zero-defect, zero-failure quality standard.
