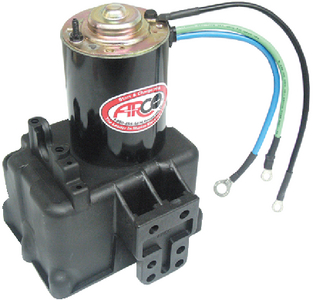

The Arco Starting & Charging 6217 is a premium OEM-quality replacement power tilt and trim motor with reservoir assembly designed for early MerCruiser stern drives (pre-1984), select Mercury/Mariner outboards, Volvo Penta stern drives, and BMW marine engines. This motor and reservoir assembly features a 3-wire configuration with ring terminal connections and operates on 12-volt systems.
Quality Construction:
- Epoxy powder-coated finish provides maximum corrosion protection for harsh marine environments
- Motor shafts are induction case-hardened at bearing surfaces for superior wear resistance
- All armatures tested to withstand 50 times operational voltage
- Performance tested at 5 different load levels to meet or exceed OEM specifications
What's Included: This complete kit includes the motor and reservoir assembly, mounting screws, gasket, adapter, and ring terminal ends. Note that this is a motor and reservoir unit only—the hydraulic pump is not included and must be reused from your existing system.
Replaces OEM Part Numbers: Mercury 92975A32, 92975A28, 67914A2, 92975A22, 92975A4, 76395A2, 92975A6, 76395A5, 64461A4, 97528A3, 93247A7, 8263A1, 8263, 93247A4, 88475A5, 79271A4, 74436A9 | Prestolite ERH4102, HYC5009 | Sierra 18-6763 | Quicksilver 8M6007552
Manufactured by Arco Marine in Pensacola, Florida, this tilt trim motor is backed by Arco's assurance warranty. Designed as a direct replacement for Prestolite units with round trim motors using rectangular trim pump bodies.
