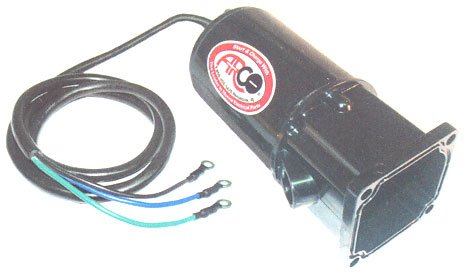

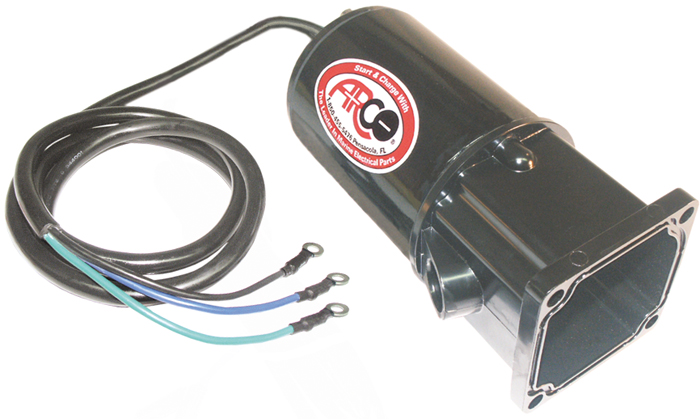

Arco Starting & Charging 6274 Tilt Trim Motor for Mercury Outboard

The Arco Starting & Charging 6274 is a heavy-duty replacement tilt trim motor designed for late model Mercury, Mariner, and Force outboard motors ranging from 75 to 125 horsepower equipped with single ram trim systems. This motor and reservoir assembly is engineered to restore reliable power trim and tilt functionality to your outboard engine.

Key Features:

• 3-wire electrical connection for straightforward installation

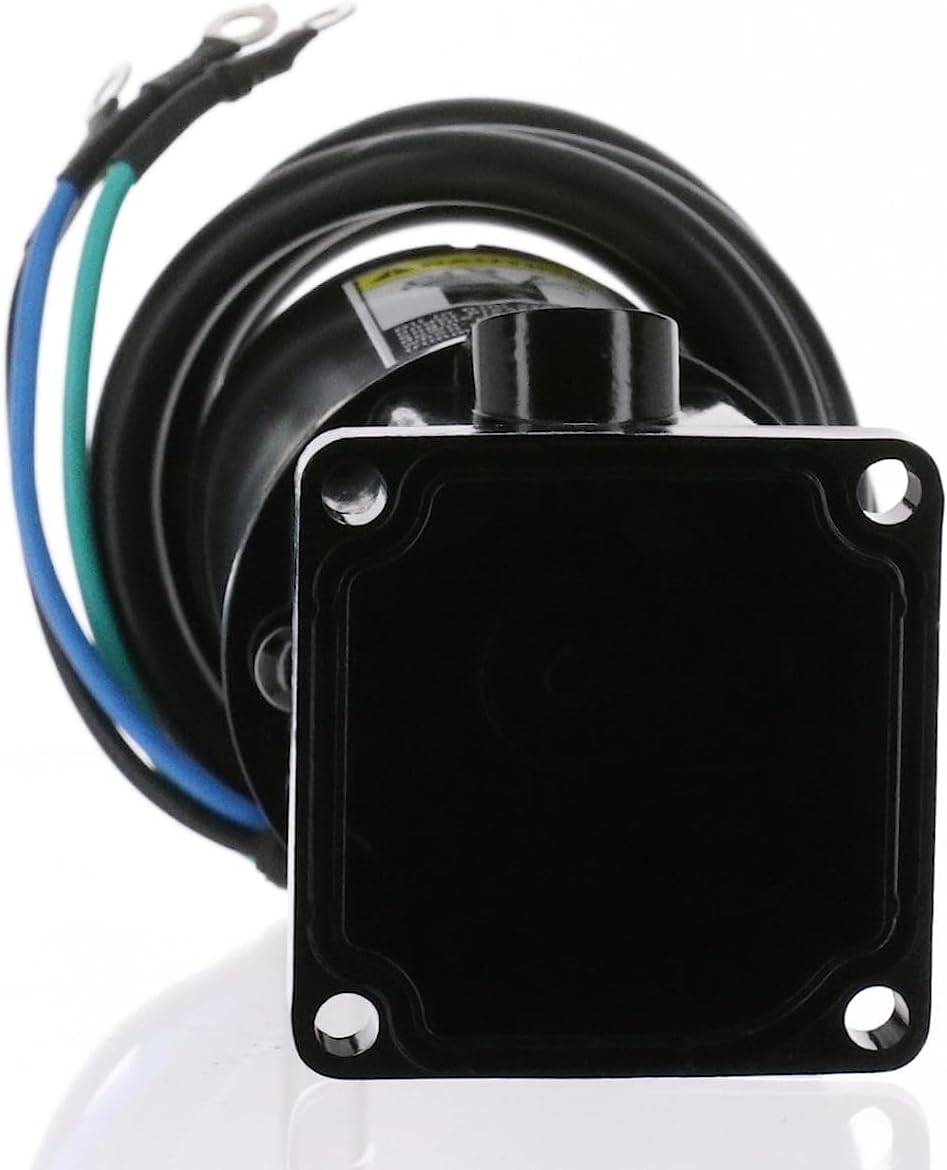

• 4-bolt mounting pattern ensures secure attachment
• Hollow-hex shaft design compatible with trim pump assembly 824051
• Motor and reservoir only (trim pump assembly sold separately)
• Ring terminal wire ends for reliable electrical connections
• Includes stainless steel mounting screws for corrosion resistance
• Complete with shaft adaptor, O-ring, and fill plug for ready installation

This replacement motor is compatible with late model Mercury/Mariner and Force 75-125 HP outboards that utilize a single ram tilt and trim system, making it an ideal service part for marine technicians and boat owners performing their own maintenance.
