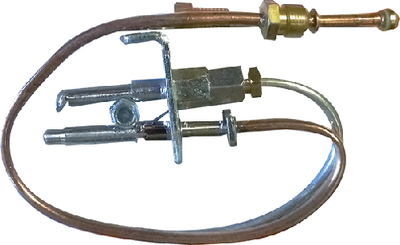

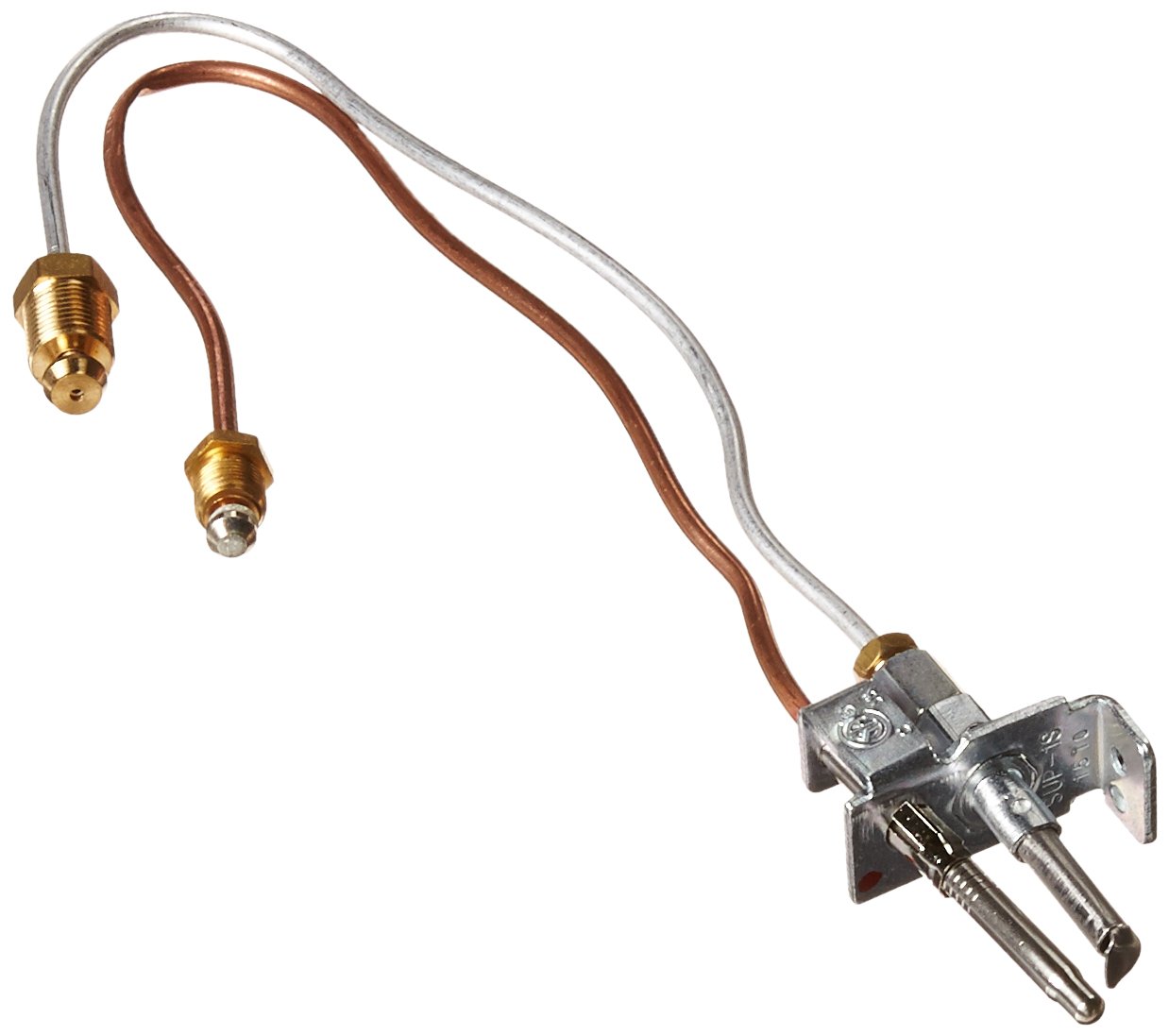

The Atwood Mobile 91603 Jade Safety Pilot Assembly is an OEM direct-replacement pilot assembly designed for Atwood propane-fired RV water heaters. This 9-inch assembly restores reliable pilot ignition performance, providing consistent hot water for RVs, campers, and trailers.
How It Works:
The pilot assembly mounts directly to the water heater main burner tube and consists of two key components working together. The gas tube (pilot light) ignites the propane flowing from the main burner, while the integrated thermocouple generates a small electrical current when heated. That current signals the gas control valve to allow gas to flow freely through the main burner, keeping the system safely operational.
Key Features:
- Jade-style pilot assembly — replaces discontinued Robertshaw-style pilot and supersedes part number 92616
- 9-inch thermocouple and pilot tube length for proper fit in Atwood water heater configurations
- Includes pilot assembly, gas tube, and thermocouple
- Direct factory replacement — comes with complete installation instructions
- Compatible with a wide range of Atwood pilot-ignition water heater models
Compatible Atwood Water Heater Models Include:
- GC6A-3, GC6A-6, GC6A-7
- G6A-2, G6A-3, G6A-6, G6A-6P, G6A-7, G6A-7P
- GH6-3, GH6-6, GH6-7
- GC6AA-7, GC6AA-7P, GC6AA-8, GC6AA-8P
- G610-3, G610-3E, GH610-3
- GC10A-2, GC10A-2P, GC10-1, GC10-2, GC10-2P
- G10-2, G10-2P
Cross-Reference Part Numbers: 91603, 91214, 92616, 52706
Installation Note: When replacing an older Robertshaw-style pilot with this Jade assembly, verify that the main burner has the correct mounting holes on the right side. If not, a compatible replacement burner will be required.
