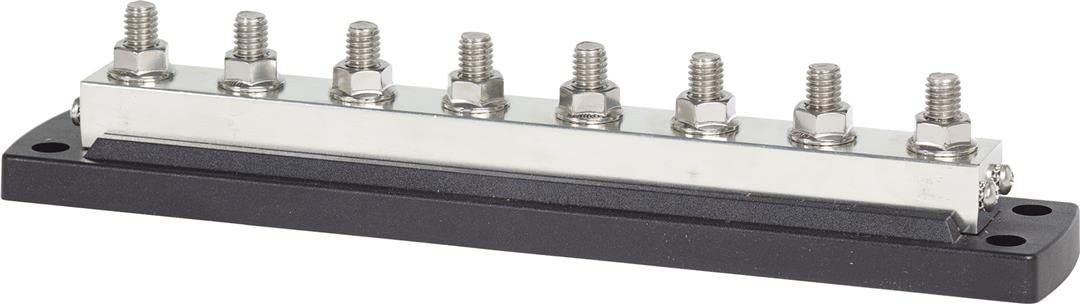

Blue Sea Systems 2107 PowerBar 600A Bus Bar - 8 x 3/8"-16 Studs

The Blue Sea Systems PowerBar 2107 is a heavy-duty high amperage bus bar designed for DC mains on larger boats and other high current applications. This robust eight-stud bus bar is rated for 600A continuous DC current, making it ideal for main positive or negative DC distribution, as well as demanding circuits including generators, inverters, windlass systems, large davits, and other high-draw equipment.

Key Features:

• 600A continuous DC rating for main bus applications on larger vessels
• Eight 3/8"-16 stainless steel terminal studs accommodate larger gauge cables and provide secure connections with proper torque specifications
• Four #8-32 terminal screws located at the ends for additional connection points
• Reinforced Lexan® polycarbonate base provides electrical insulation and durability
• Four 1/4" mounting holes for secure installation and cable support
• Tin-plated copper construction (CDA 110/UNS C1000) ensures excellent conductivity and corrosion resistance
• Backed by Blue Sea Systems lifetime warranty

Technical Specifications:

• Continuous Rating: 600A DC
• Maximum Voltage: 48V DC / 300V AC
• Terminal Studs: 8 x 3/8"-16 stainless steel
• Terminal Screws: 4 x #8-32
• Bus Bar Material: Tin-plated copper (CDA 110/UNS C1000)
• Base Material: Reinforced Lexan® polycarbonate
• Mounting: Four 1/4" fastener holes

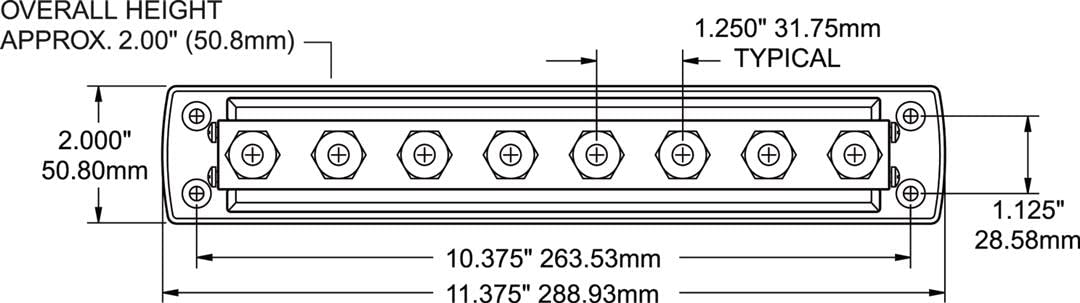

• Dimensions: 11 3/8" L x 2" W x 2" H

The 3/8" studs are engineered to support the proper torque requirements needed to create optimal electrical connections with larger cables, ensuring minimal voltage drop and maximum system reliability in demanding marine environments.
