Built to last and look great in your flybridge or open cockpit

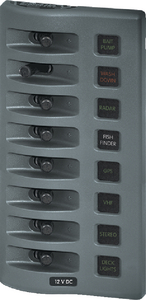

WeatherDeck® 12V waterproof panels are ready to take on the harshest of environments. They can be oriented in any of four different ways to expand your mounting location options. Included square circuit labels are designed to be placed above or below in the horizontal configuration, and to the right or left in the vertical. Rugged UV stabilized waterproof boots. All panels use ATO/ATC blade fuses. The bi-colored LEDs illuminate circuit labels to quickly reveal ON, OFF or Blown circuits. Includes a set of common DC labels and a replacement fuse kit—a West Marine exclusive. Panels come loaded with 15A ATC fuses.
Key Features
- Rated IP67 from the face when installed with supplied gasket
- IP67 rated for immersion in 1 meter for 30 minutes
- Ideal for flybridge and open cockpit applications
- Backlit labels (included)
- Colored LED lights indicate ON, OFF and blown fuses
- Integrated ATO/ATC fuses (six 15amp fuses included)
- Lifetime warranty
Specifications
- Weatherproof: waterproof
- Positions: 8
- Voltage: 12
- Panel Cumulative Rating: 100A
- Switch Rating: 15A @12V
- Approvals: CE, IP67
- Dimensions: 7 11/16"H x 3 7/8" x 2 1/2"D
