Product Details

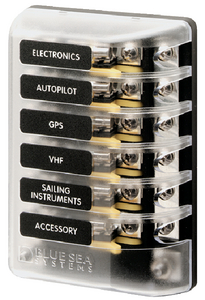

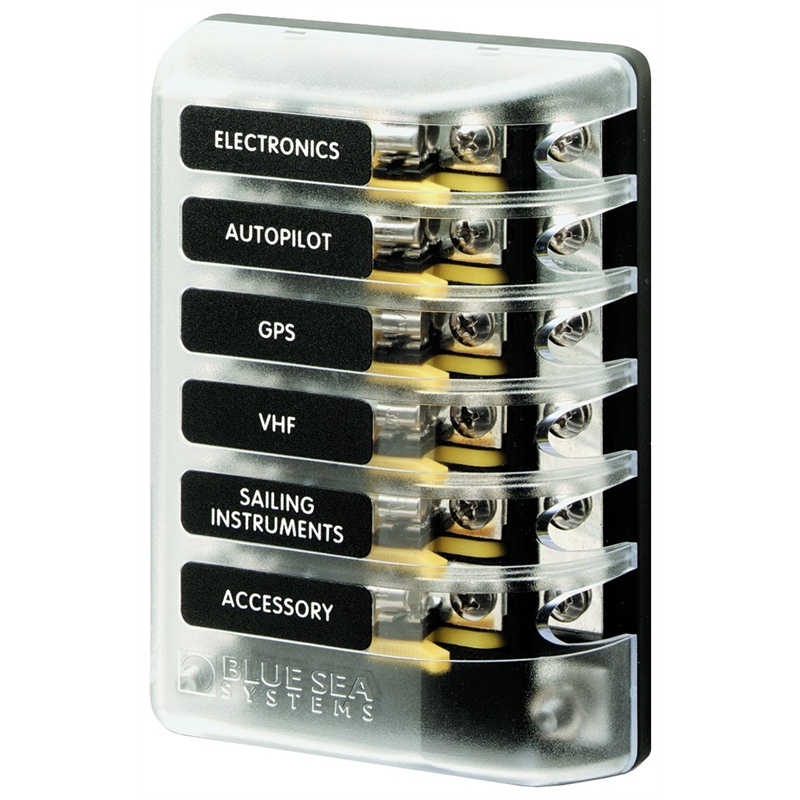

Blue Sea Systems 5015 AGC Fuse Block Systems

Glass Fuse Block, 6 Circuit w/ground

Blue Sea Systems 5015

A traditional glass fuse (AGC) panel with some modern features

Blue Sea Systems has added some helpful features to ST glass fuse blocks. The insulating cover adds space to accept easy to read labels and satisfies ABYC and USCG requirements for insulation. Spare fuses store neatly in the cover. Fuses are spaced in a manner to make them easier to remove and install. Available with or without a ground bus to match the application. Corrosion resistant tin-plated copper buses and phosphor bronze fuse clips are made for marine applications will provide years of service.

Key Features

  • Improved cover accepts larger easy to read labels (sold separately)
  • Spare fuses store in cover
  • Cover satisfies USCG and ABYC requirements for insulation of conductive components
  • Will accept Fast-acting (AGC), Time-delay (MDL) and 3AG Glass fuses
  • Available with or without ground bus bar to meet application requirements
  • Lifetime warranty

Specifications

  • Maximum Amperage: 30A per circuit
  • Voltage: 32V
  • Panel Cumulative Rating: 100A
  • Terminal screws: #8-32 with captive star washer
  • Materials: reinforced polycarbonate base with clear polycarbonate cover, tin-plated copper buses and phosphor bronze clips
  • Approvals: ABYC, USCG
  • Dimensions: 5 "H x 3 1/2"W x 1 1/4"D
