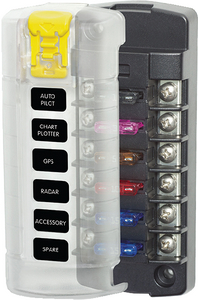

Blue Sea Systems 5035 ST Blade Fuse Block 6 Circuit 30A

Manufacturer

Blue Sea Systems

Picture for manufacturer Blue Sea Systems

Part Number

5035
16 reviews
03/11/2036 9:09 PM
Sale Price

$31.81

In Stock (10+)

delivery box

Usually delivered within 2 days

Add To Cart

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Blue Sea Systems 5035 ST Blade Fuse Block provides organized circuit protection for marine and automotive electrical systems. This 6-circuit fuse block offers a space-saving solution for protecting new installations or expanding existing systems when your distribution panel has reached capacity.

Key Features:

  • 6 independent circuits with tin-plated copper buses and fuse clips rated up to 30A per circuit
  • Accepts ATO and ATC fast-acting blade fuses (sold separately)
  • Positive distribution bus with #8-32 stud for easy power connection
  • Clear, hinged cover with push-button latch satisfies ABYC and USCG insulation requirements
  • Integrated storage for two spare fuses and label recesses compatible with Blue Sea Systems Small Format Labels
  • Accepts ring or snap fork terminals for versatile wiring options
  • Compact design allows installation in tight spaces near protected loads

Specifications:

  • Circuits: 6 independent
  • Maximum Amperage: 30A per circuit
  • Maximum Voltage: 32V DC
  • Mounting: #8 screws
  • Bus Fasteners: #8-32 with captive star washer
  • Dimensions: 5.125" L × 2.125" W × 1.5" H
  • Weight: 0.35 lbs

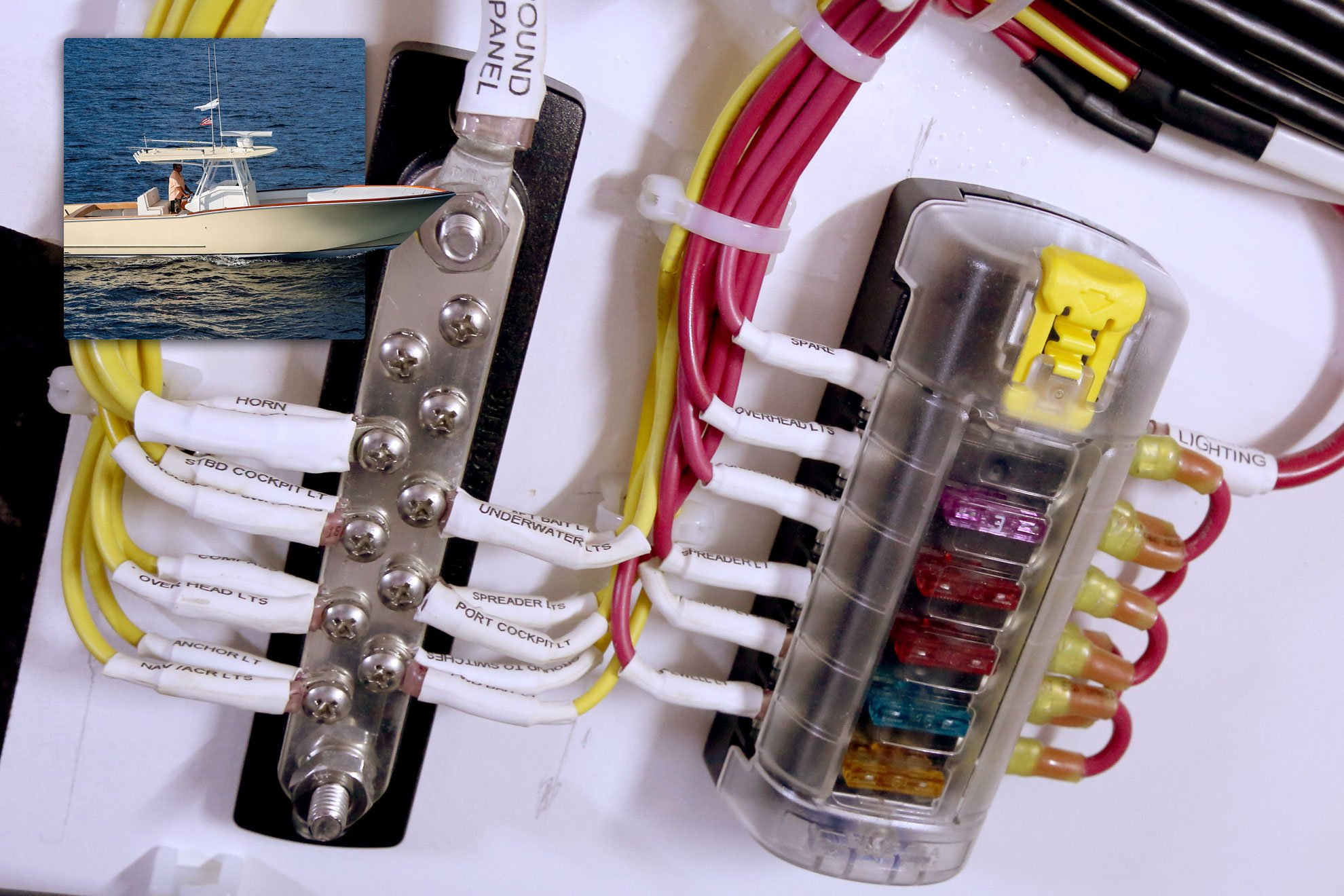

Ideal for electronic installations, this fuse block can be fed by a single breaker from your main distribution panel and supply protected power to six additional circuits. Backed by Blue Sea Systems' lifetime warranty.

Products specifications

Amperage

100 Amps at 24 Volts DC

Mounting Hardware

ST Blade Fuses (Sold Separately)

Type

Fuse Blocks

ISO Approved

ABYC/USCG Requirements

Warranty Details

Lifetime
