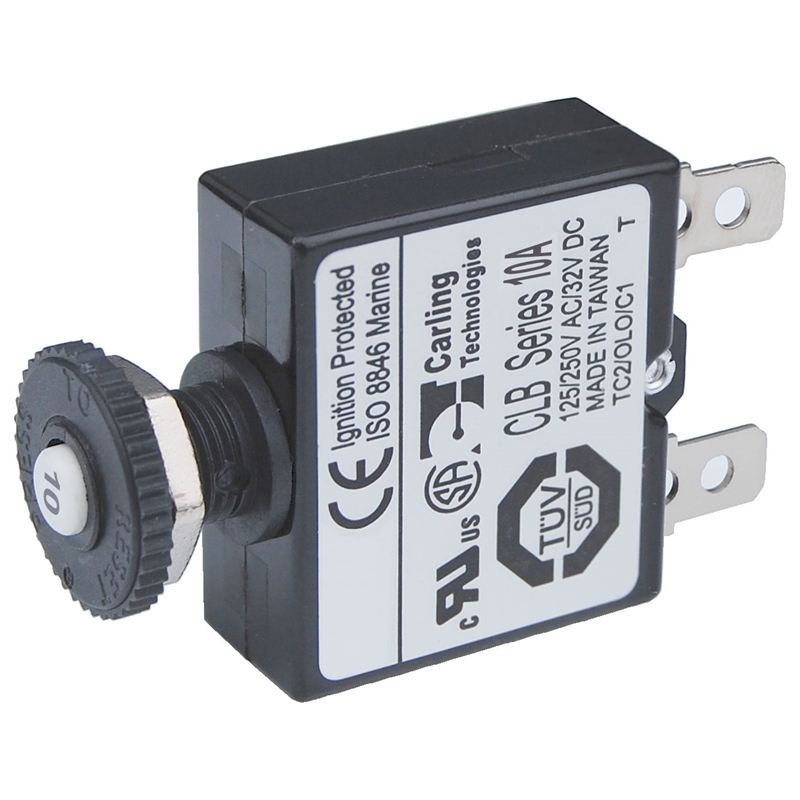

Provides economical circuit protection for 3 to 40 Amp loads when switching is provided elsewhere or not required.
Compact, ignition protected design allows high density DC circuit protection in tight quarters. Push-to-reset, “trip free” design cannot be held “ON” during fault conditions. Optional waterproof boot provides additional circuit breaker protection in wet environments.
- Branch circuit breakers - also used for 24-hour circuit protection
- Push-to-reset operation
- Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
- Ignition protected - Safe for installation aboard gasoline powered boats
- Optional push button waterproof boot protects circuit breaker in wet environments
Specifications
- Circuit Breaker Type: Thermal trip, manual push-button reset only
- Voltage Compatibility: DC
- Maximum Voltage: 32V DC
- Interrupt Capacity: 3000A @ 14.7V, 2500A @ 28V
- Safety Features: “Trip Free” design cannot be held “ON” during fault
- Housing Material: Plastic
- Housing Dimensions: 1-3/8"L x 5/8"W x 2-3/8"D
- Terminal Type: 1/4" Male Quick Connect Terminals
- Mounting Hardware: Mounts in 3/8" hole
- Weight: 0.06lb (0.03 kg)
- Approvals: UL 1077 -UL cUL (USA and Canada), TUV certified, UL 1500 and ISO 8846, CE Marked
- Warranty: LIfetime
