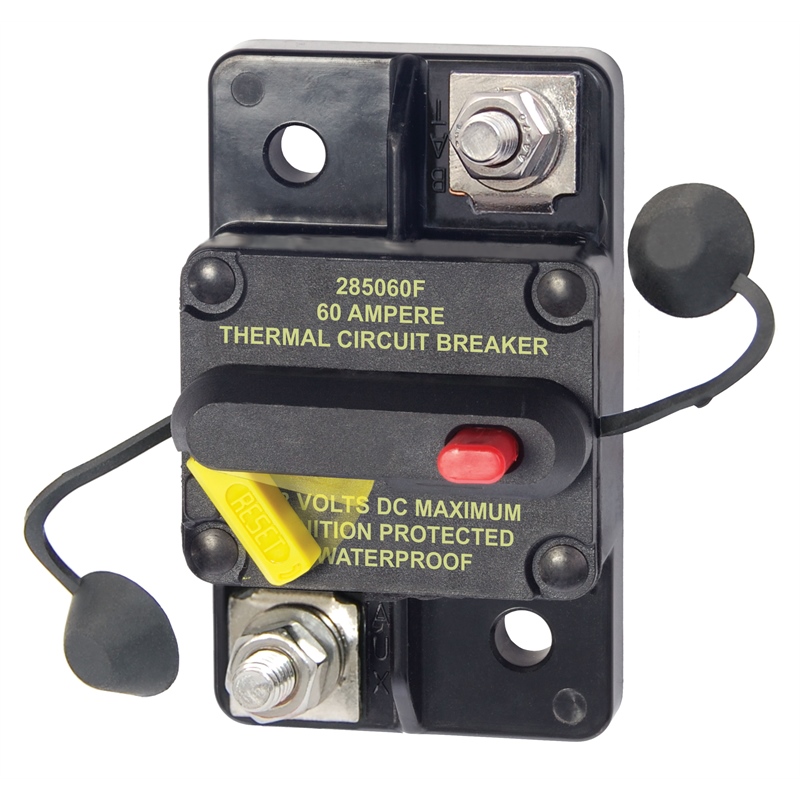

Blue Sea Systems 7184 Surface Mount Circuit Breaker 60A 285 Series

The Blue Sea Systems 7184 is a 60-amp surface mount circuit breaker from the 285 Series, designed to provide medium-duty circuit protection for loads ranging from 25 to 200 amperes when both switching capability and circuit protection are required. This unit serves as a direct drop-in replacement for the legacy 185 Series circuit breakers.

Key Features:

• 60-amp rating with surface mount configuration
• Trip-free design prevents breaker from being held closed after tripping
• Visible reset lever clearly indicates open/tripped condition
• Combines switch and circuit breaker functionality in one unit
• Meets SAE J1171 external ignition protection standards
• Rated for 24V DC maximum systems
• Direct replacement for 185 Series circuit breakers

The trip-free mechanism ensures safe operation by preventing override of the protection function. The prominent reset lever provides clear visual indication of breaker status, making troubleshooting quick and easy. Ideal for marine, RV, and other DC electrical systems requiring reliable overcurrent protection.

Important: Do not use as a switch in applications where high inrush currents are expected, as this may reduce service life or cause premature tripping.
