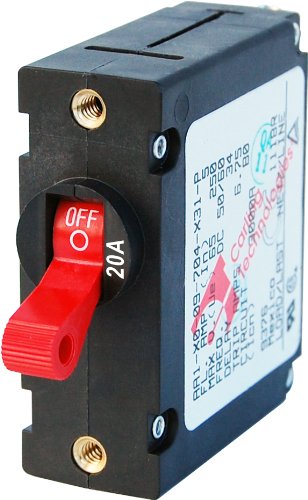

Blue Sea Systems 7213 20A Magnetic Circuit Breaker Single Pole Red

The Blue Sea Systems 7213 is a 20-amp single pole magnetic hydraulic circuit breaker designed for marine and mobile electrical systems. This red-handled breaker combines circuit switching and overcurrent protection in one compact, reliable device, making it the industry standard for Blue Sea Systems electrical panels and custom installations.

Key Features:

• Trip-free magnetic hydraulic design prevents the breaker from being held in the ON position during fault conditions
• Combines manual switching and automatic circuit protection in a single device
• Red actuator handle for easy identification of 20-amp rating
• Standard trip delay suitable for most electrical loads
• Single pole configuration for AC or DC circuits

Technical Specifications:

• Amperage Rating: 20 Amps
• Maximum Voltage: 277V AC / 65V DC
• Trip Delay: Standard
• Rated Switch Cycles: 10,000 at rated amperage and voltage
• Breaker Type: Magnetic Hydraulic, Trip-Free

Certifications:

• Meets ABYC (American Boat and Yacht Council) Standards
• UL 1077 Recognized
• TÜV Certified
• CE Marked for European compliance
• CSA Certified for Canada

This circuit breaker is ideal for protecting electrical circuits in boats, RVs, and other 12V/24V DC or AC systems. The magnetic hydraulic mechanism provides reliable protection without the temperature sensitivity of thermal breakers, making it suitable for harsh marine environments.
