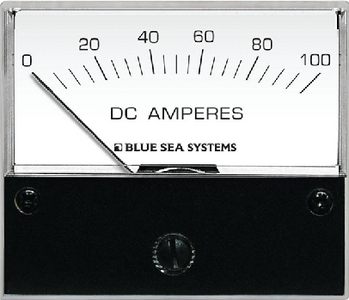

Blue Sea Systems 8017 DC Analog Ammeter 0-100A with External Shunt

The Blue Sea Systems 8017 DC Analog Ammeter provides accurate current monitoring for DC electrical systems, measuring from 0 to 100 amperes. This professional-grade meter features a classic analog display with a knife-edge pointer for precise readings, making it ideal for marine, RV, and industrial applications where reliable current monitoring is essential.

Key Features:

• 0-100 ampere DC measurement range with included external shunt
• 2-3/4 inch (72mm) DIN standard face size for universal panel mounting
• Backlit white matte meter face with black printed scale for excellent visibility in all lighting conditions
• Simple 4-wire connection for straightforward installation
• Surface or panel mount capability for flexible installation options

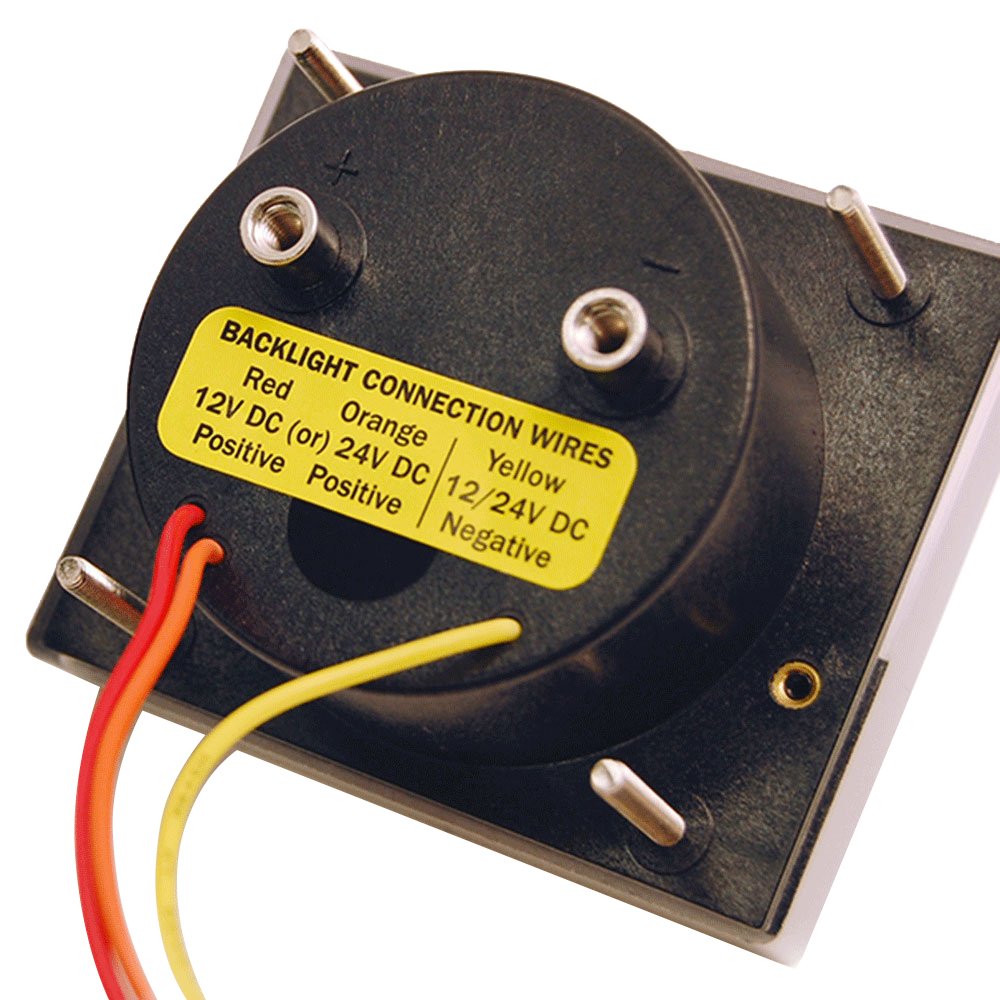

• Separate 12V or 24V DC connection required for backlighting
• Terminal cover included to prevent accidental short circuits
• Knife-edge pointer design for accurate current readings

This ammeter uses an external shunt (included) to safely measure high current loads without passing full amperage through the meter itself. The European DIN 72mm standard design ensures compatibility with standard instrument panels, while the backlit display allows for easy monitoring in low-light conditions such as engine rooms or nighttime operation.
