Ideal for flybridge or open cockpit applications

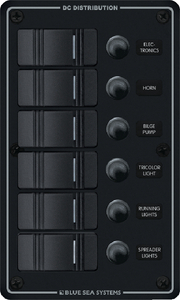

Blue Sea System water resistant panels are made to be exposed to the elements; including saltwater spray and washdowns. An included gasket seals the panel and protects areas behind the dash from water intrusion. These panels feature modern Contura rocker switches and look at home on almost any boat. LED lights behind each switch indicate it is ON. Each switch has a corresponding push-button 15A breaker that is protected by a waterproof boot These pre-wired panels are available in 3, 4, 6, and 8 position panels; there is one to fit, most applications and provide an extra switch for expansion. Included 60 label set makes organizing the switches a breeze.
Key Features
- Water resistant Contura rocker switches stand up to saltwater spray, rain and hose spray
- Panel seals against mounting surface to prevent water intrusion with included gasket
- Available in 3, 4, 6, and 8 switch/fuse configurations to match application
- Push-buttonreset breaker is accessed right on the panel and protected by a waterproof boot
- Includes 60 label set to organize switches
- Lifetime warranty
Specifications
- Waterproof: Water resistant
- Positions: 6
- Voltage: 12V/24V
- Panel Cumulative Rating: 45A, 90A (8 position)
- Switch Rating: 20A @12V, 15A @ 24V
- Approvals: CE, IP66, ISO 8846, UL 1500
- Dimensions 8373: 7 1/2"H x 4 1/2"W x 3 1/4"D
