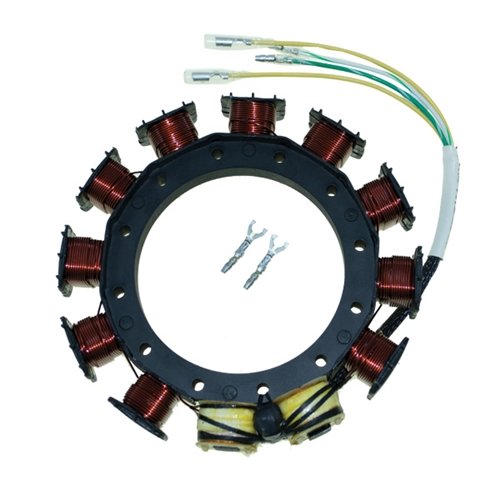

CDI Electronics 174-2075K 1 Mercury Mariner Stator 2/3 Cyl 9 Amp

The CDI Electronics 174-2075K 1 is a high-quality replacement stator designed specifically for Mercury and Mariner outboard engines. This 9-amp stator features exposed copper windings that provide excellent heat dissipation, making it ideal for demanding marine applications.

Key Features:

• 9-amp output for reliable electrical system performance
• All-copper tin-plated core construction meets or exceeds OEM specifications
• Exposed windings design allows for improved cooling and heat management
• Designed for use with CDM modules (1996 and newer engines)
• Direct replacement for Mercury Red Stator systems
• Professional-grade quality built to withstand harsh marine environments

Application:

• 1995-2005 Mercury/Mariner 30 and 40 HP (2 Cylinder)
• 1996-2005 Mercury/Mariner 40, 50, 55, and 60 HP (3 Cylinder)
• For engines equipped with CDM modules

Important Notes:

• This stator is designed for use with CDM module systems only
• Not a replacement for 398-5454, 398-8778, or 398-9710 series stators
• If used with certain switch box models without adapter module, damage may occur

OEM Replacement Numbers: 398-832074A5, 398-832074A11, 398-832075A13, 398-832075A14, 398-9873A13, 398-9873A15, 398-9783A18, 398-9783A29

CDI Electronics is the industry standard for quality marine ignition systems, producing state-of-the-art components that deliver exceptional reliability and performance. Backed by a 2-year limited warranty against defects in materials and workmanship.
