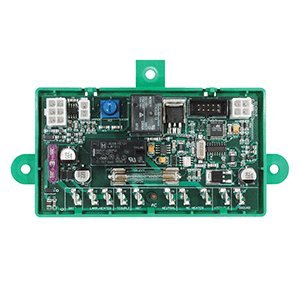

Dinosaur Electronics 3850415.01 Replacement Control Board for Dometic Refrigerators

The Dinosaur Electronics 3850415.01 is an aftermarket replacement control board designed specifically to replace Dometic part number 3850415-xxx in gas absorption refrigerators. This lower control board serves as the main circuit board, controlling the ignition and operation of the propane system as well as power to the AC element.

Key Features:

• Direct replacement for Dometic 3850415-xxx Black Box Boards
• Built-in fuse protection with 3-amp fuse for added board protection
• Variable temperature adjustment feature for fixed-temp refrigerators
• 2-way or 3-way operation capability
• CHECK light indicator that illuminates after each failed ignition attempt
• Automatic 3-try ignition cycle that repeats at 30-minute intervals if no flame is detected
• DC voltage protection: DC element drops out and mode light flashes if voltage falls too low for more than 10 seconds
• Easy-to-remove cover included
• Three-year manufacturer warranty

This replacement board requires an external igniter for propane ignition and offers enhanced functionality compared to the original equipment, including the adjustable temperature control that provides greater flexibility for RV refrigerator operation. Made by Dinosaur Electronics, a leader in RV replacement circuit boards with decades of experience since 1990.

Important: Use this board only to replace Dometic 3850415-xxx boards. Do not attempt to replace other part numbers with this board.
