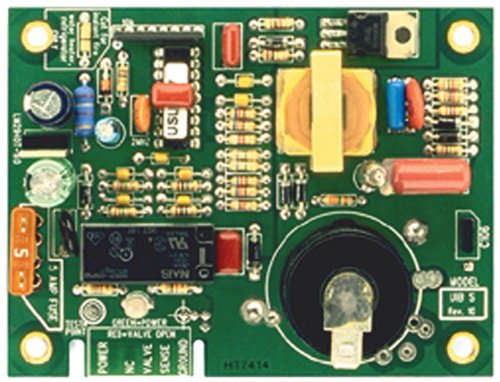

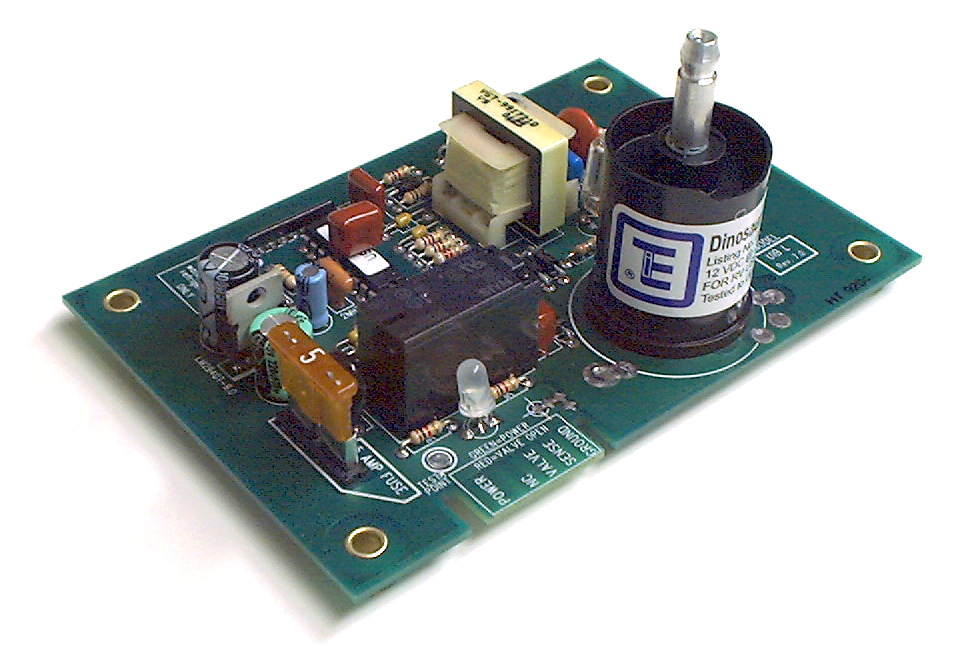

Dinosaur Electronics UIB-L Large Universal Ignitor Board 12V

The Dinosaur Electronics UIB-L is a large universal ignitor board designed for use in RV and marine furnaces, refrigerators, and water heaters. This TEI-certified board meets UL 372 and UL 353 specifications for the RV industry, providing reliable ignition control for 12-volt DC applications.

Key Features:

• Replaceable fuse protection guards against short-circuit damage in 12-volt circuits
• Dual flame sense capability works through high voltage connector and edge connector simultaneously, plus external sense connector
• Diagnostic LED glows green when power is applied and turns red when gas valve is activated
• Built-in voltage regulator cleans up the 12-volt supply power
• 3-try ignition system attempts to ignite gas three times with appropriate purge cycles before lockout
• Removable jumper converts board to instant fire mode for refrigerator or water heater use
• Double-sided plated through-hole technology for enhanced reliability

Compatible with Dometic and Norcold refrigerators, Coleman, Duo-Therm, Hydroflame, and Suburban furnaces, and Atwood, Mor-Flo, or Suburban water heaters. Board measures 3.43 inches by 5.10 inches and comes with a three-year warranty. This version features spade-style high voltage connector. Protective cover sold separately and should not be used in furnace applications.
