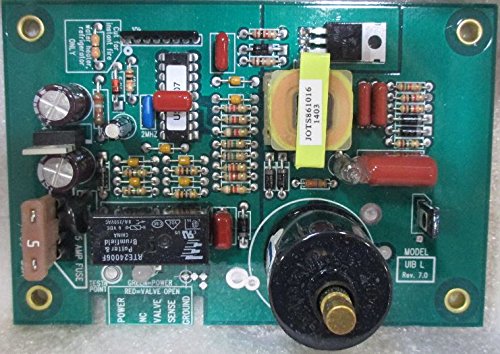

Dinosaur Electronics UIB-L POST Universal Ignitor Board Large with Post Terminal

The Dinosaur Electronics UIB-L POST is a universal ignitor control board designed for RV furnaces, water heaters, and select refrigerators including Norcold and Servel models. This large-format board features a convenient post-style high voltage terminal (spark plug top) for easy connection and is certified by Testing Engineers International to meet UL 372 and UL 353 specifications for the RV industry.

Key Features:

• TEI certified for use in RV industry (UL 372 and UL 353 compliant)
• 12 Volt DC operation with microcontroller for stable, accurate performance
• Post-style high voltage terminal for convenient spark plug wire connection
• Dual-color diagnostic LED (green indicates power to board, red shows gas valve activation)
• Replaceable 5-amp automotive fuse protects against short circuits
• 3-try ignition system with 20-second purge cycle for safe startup
• Removable jumper enables instant-fire operation for water heaters and refrigerators
• Double-sided plated through-hole construction for superior reliability
• Built-in surge protection and voltage regulation
• Board dimensions: 3.43" x 5.10"

This universal replacement board works with numerous OEM part numbers from manufacturers including Coleman, Duo-Therm, Hydro-Flame, Suburban, Atwood, Mor-Flo, Dometic, and Norcold. Compatible OEM numbers include 05-152435-003, 05-152435-103, 05-152436-053, 05-152436-103, 4322-321, 61525022, 61549522, FA7615, MPD91731, and others. The board includes a three-year warranty and is manufactured in the USA. Note: protective cover sold separately and should not be used in furnace applications due to heat.
