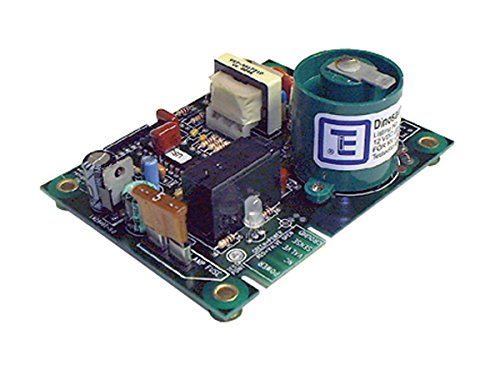

Dinosaur Electronics UIB-S Universal Ignitor Board Small 12V DC

The Dinosaur Electronics UIB-S is a compact and versatile 12V ignition control board designed for a variety of heating applications, commonly used in RVs. This universal ignitor board is compatible with Dometic and Norcold refrigerators, Coleman, Duo-Therm, Hydro-flame, and Suburban furnaces, and Atwood, Mor-Flo or Suburban water heaters.

Key Features:

• Certified to meet UL 372 and UL 353 standards by Testing Engineers International for RV industry use
• Microcontroller ensures accurate and stable operation
• 3 Try Ignition: Attempts to ignite gas three times with appropriate purge cycles before lockout
• Two color LED monitors the NC and valve terminals - GREEN when there is power to the board, RED when there is power for the valve
• Removable Jumper: Enables instant fire operation in water heaters and refrigerators
• Fuse Protection: Includes a replaceable 5 Amp automotive fuse to safeguard against short circuits
• Superior Construction: Features plated and soldered through holes to minimize intermittent connections
• Diagnostic LEDs assist in troubleshooting
• Compact design measures 3.25" x 4.25"
• Spade connector terminals for easy installation
• Made in the USA

This board features delayed 3-try ignition with 20-second purge cycles and local flame sense. Three year registration card included with each board. The UIB-S uses double-sided plated through-hole technology for enhanced reliability and is both fuse and surge protected. An optional protective cover is available separately for added board protection.
