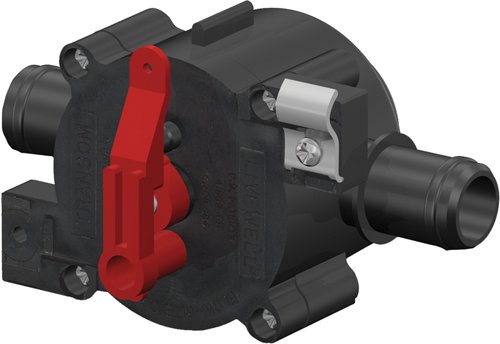

Flow-Rite MPV-04-RN01 V4 Three-Position Livewell Control Valve Rear Cable Barbed

The Flow-Rite V4 valve allows a standard aerator pump to be mounted directly to the valve body for both filling and recirculation duties, thus eliminating the need for two separate pumps and additional plumbing. This valve is ideally used in bassboats, flat boats, and other low profile boats for automatic drain control and livewell management.

Three Operating Positions:

• FILL: Closes the livewell drain side of the valve so the pump has free access to fresh outside water
• RECIRC: Closes the drain and allows full recirculation of the livewell water
• EMPTY: Allows gravity draining with the pump off

This valve includes a closed recirculation mode which allows addition of an optional pump-out system and operates with the MC-1-04-100 actuator. The V4 valve has two cable approach options - the cable can approach the valve from either the front/livewell or the rear/transom side of the boat. This model features rear cable approach configuration.

The barbed version includes a hose clamp and molded bump. The pump port is 3/4 inch NPT female.
