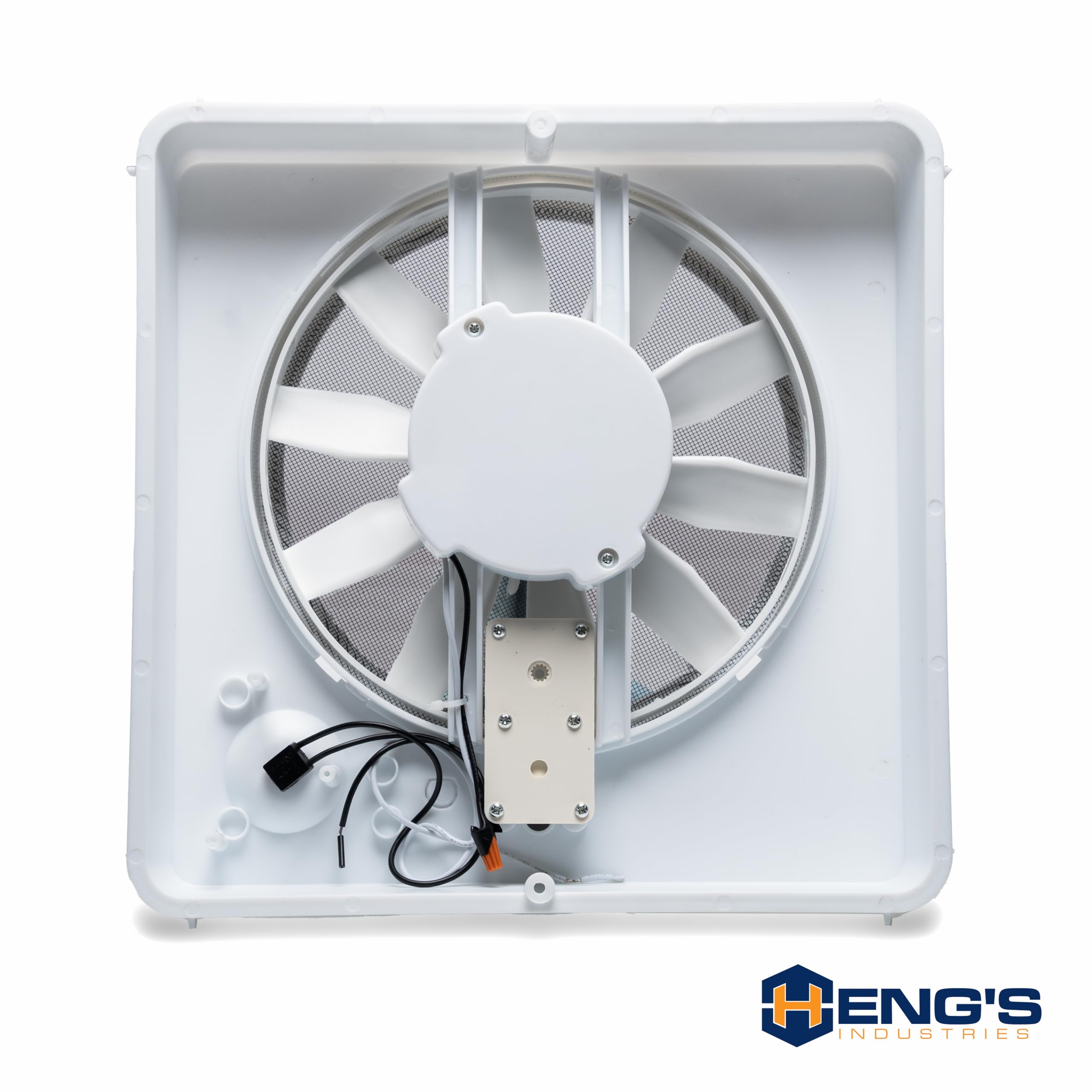

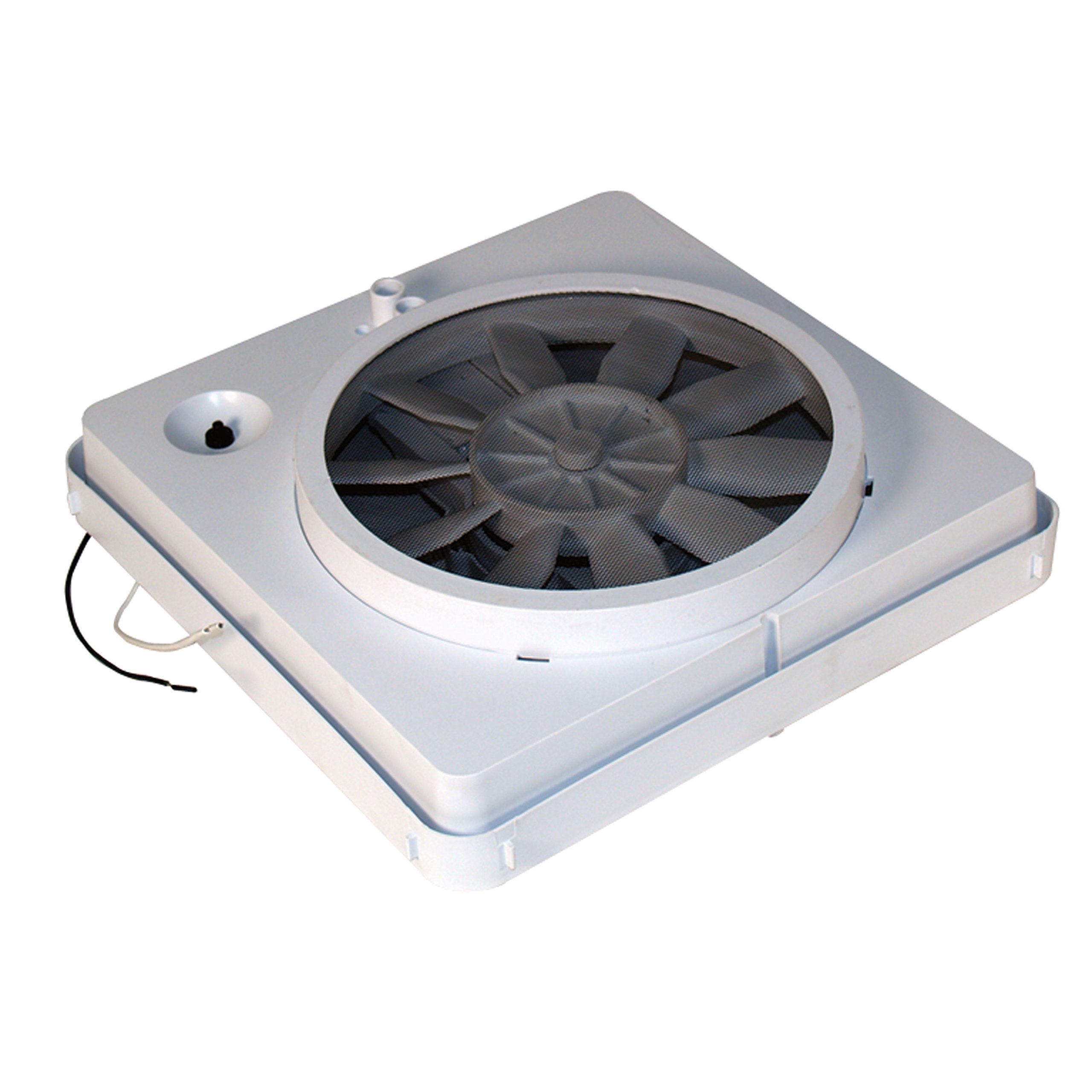

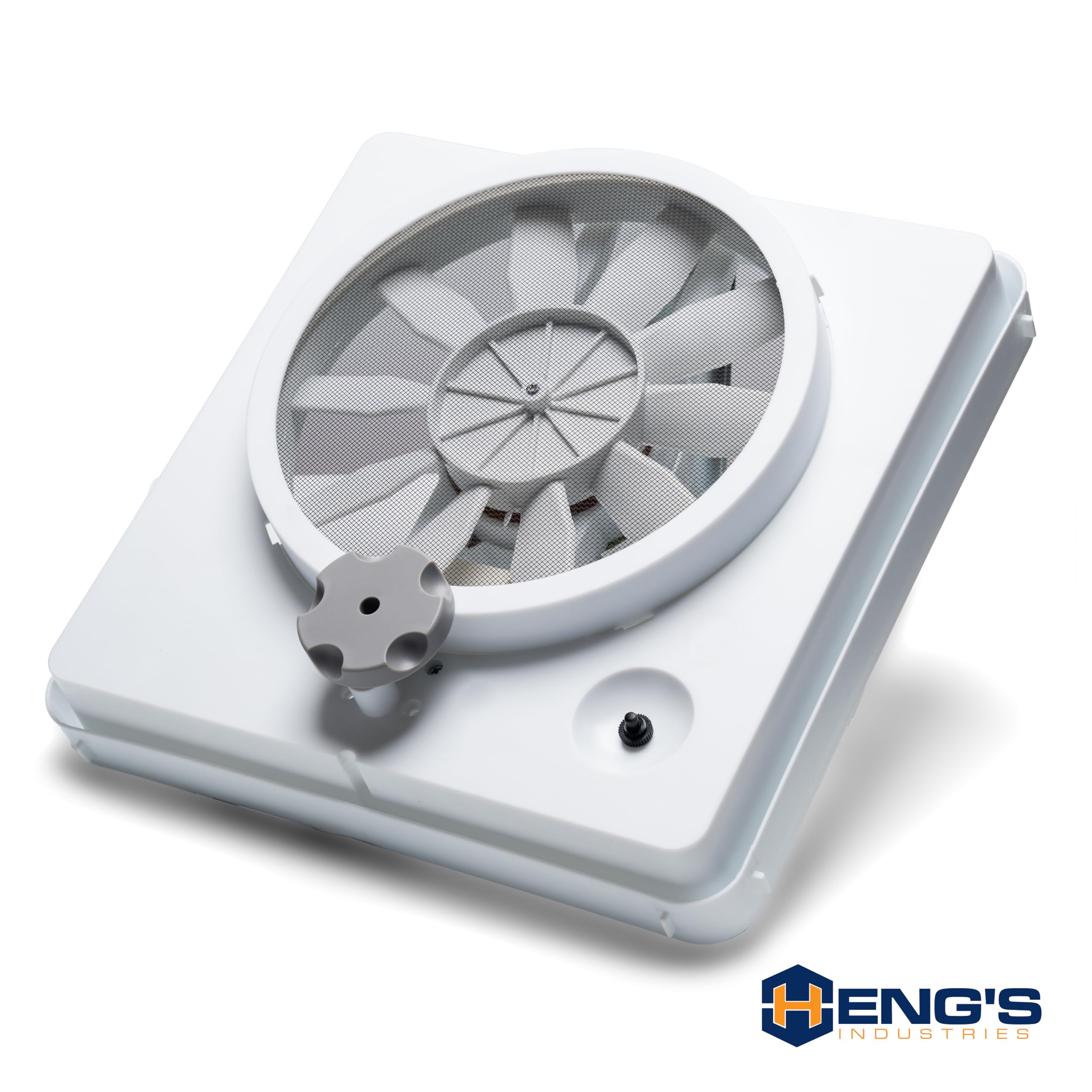

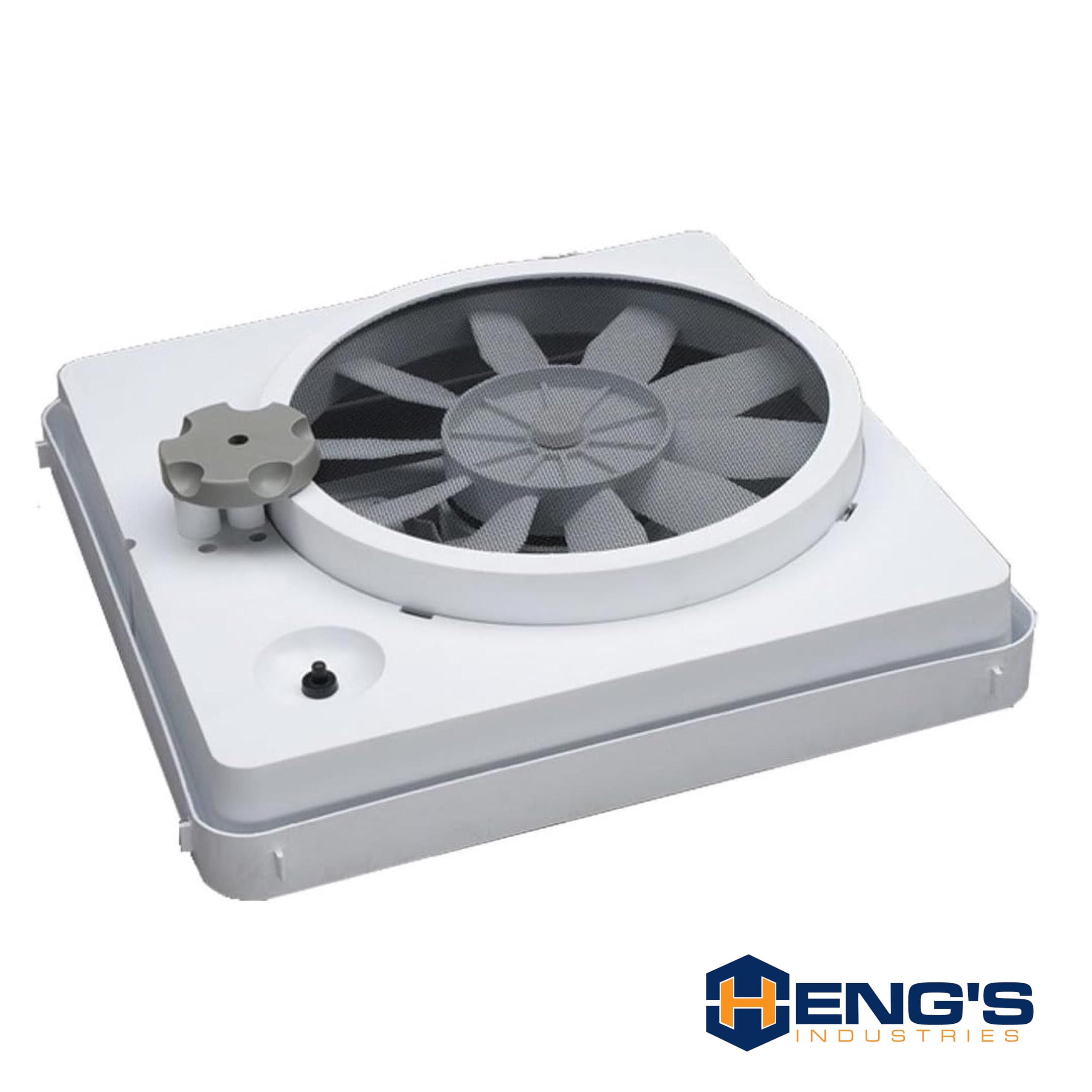

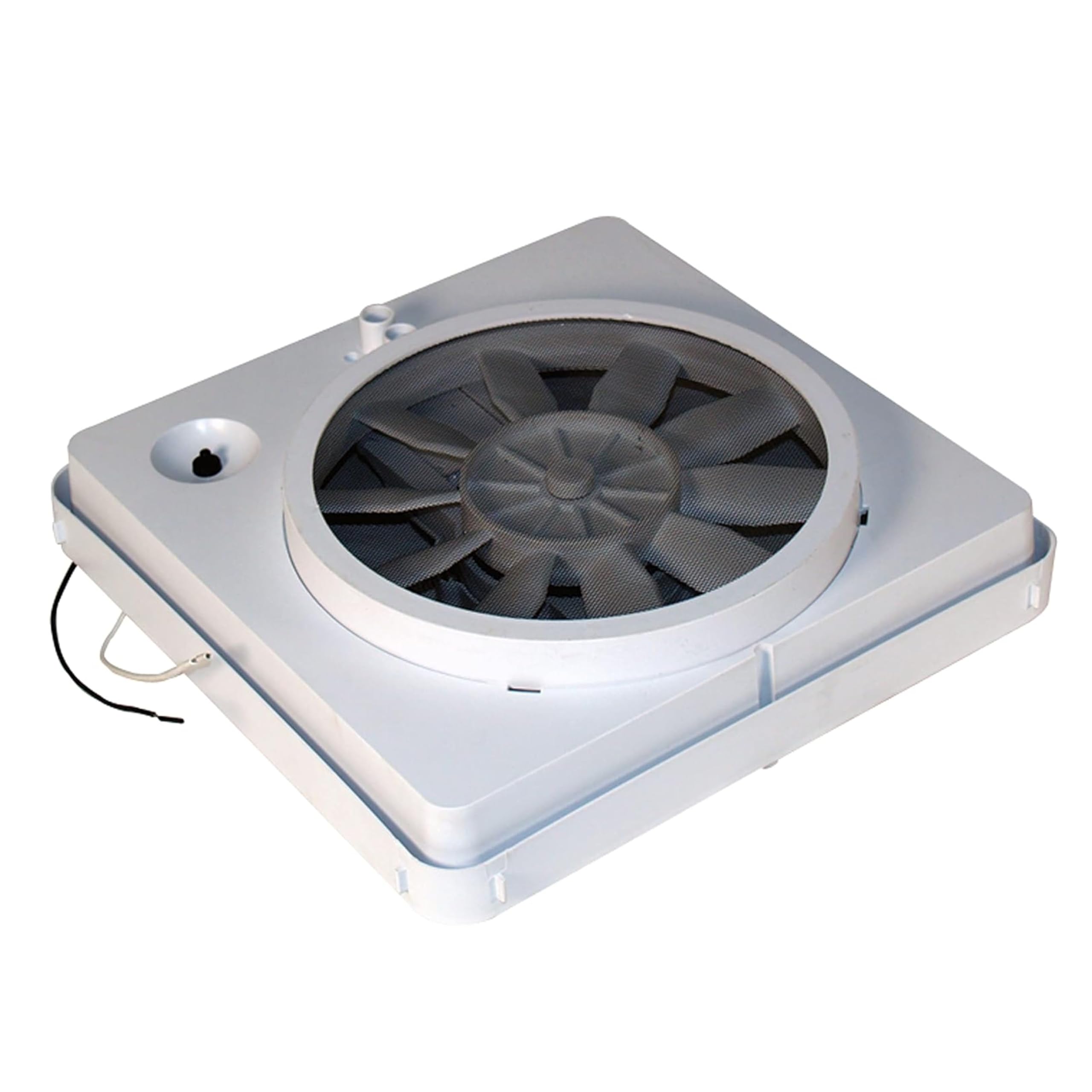

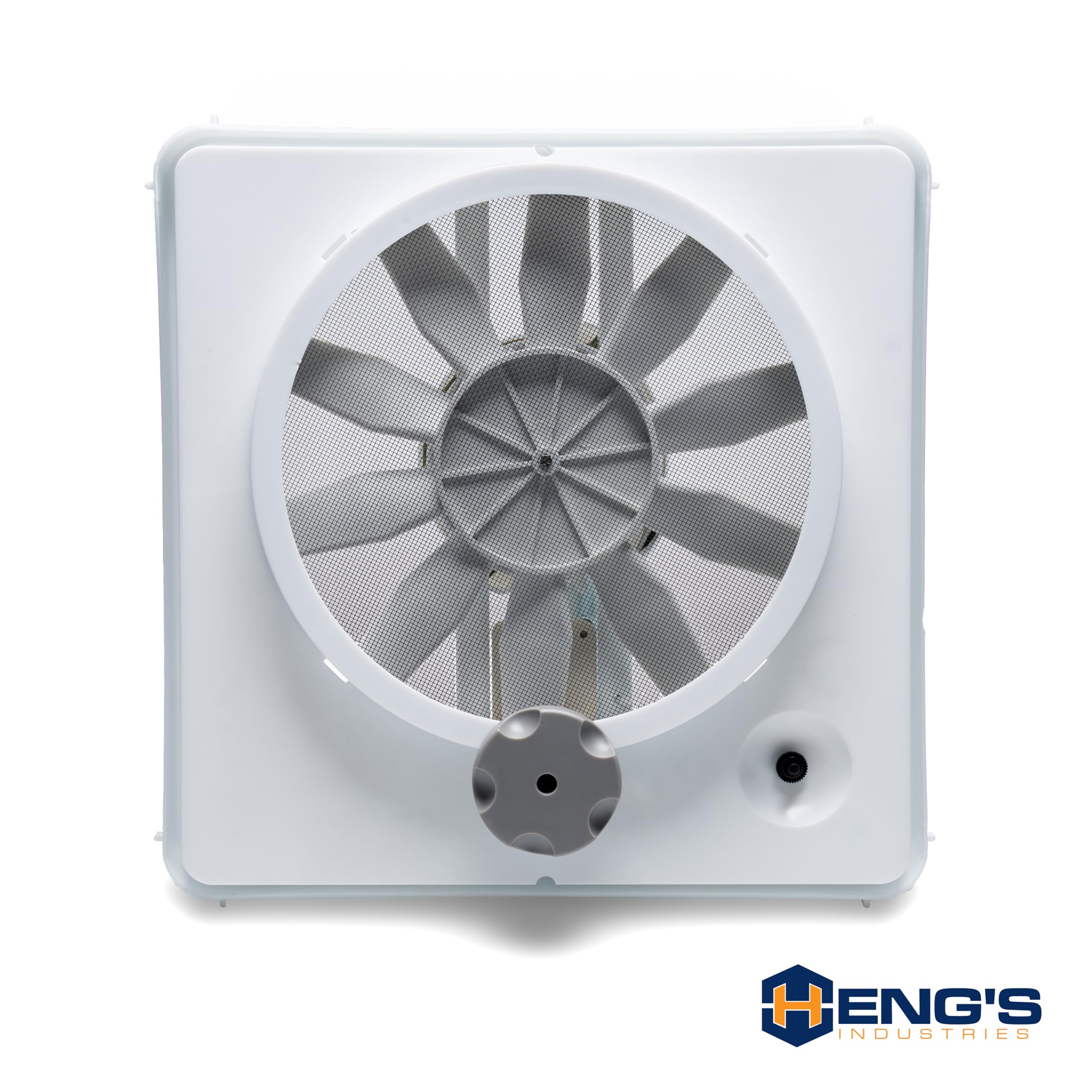

Heng's 90043-CR Vortex I 12V RV Roof Vent Fan Upgrade Kit

The Heng's 90043-CR Vortex I is a high-performance 12-volt RV roof vent fan upgrade kit designed to transform your existing powered roof vent into a powerful, high-velocity air movement system. This single-speed fan kit delivers up to 300% more airflow compared to standard RV roof vent fans, dramatically improving ventilation in your RV, camper, or motorhome.

Key Features:

• 188 CFM (cubic feet per minute) airflow capacity with 9-inch fan blade
• 12V DC operation with 1.8 amp draw and 2.2 amp motor
• Single-speed operation with push-button on/off switch
• Quiet operation at approximately 35 dBA noise level
• Compatible with Heng's, Ventline, Jensen, and Elixir powered 14-inch RV roof vents
• Self-centering metallic base with radius corners for easy installation
• Manual crank handle included for opening and closing vent lid
• Low-profile design with easy-to-remove shroud for cleaning

Installation:

Installation is straightforward and can be completed from inside your RV using only a Phillips head screwdriver. The kit replaces your existing screen, garnish, and motor assembly without disturbing your rooftop sealant. The lightweight 3.8-pound design makes it easy to handle during installation. Note that this is a fan insert only and does not include an interior garnish ring.

Specifications:

• Dimensions: 13.5 x 13.5 x 3.5 inches
• Weight: 3.8 pounds
• Voltage: 12V DC only (do not use with 110V/115V/220V AC power)
• Power draw: 0.8-1.4 amps during operation
• Color: White
• Fits standard 14-inch x 14-inch RV roof vents

Important Notes:

This kit is designed for 12-volt DC systems only and is not compatible with Fantastic Fan brand vents or Super Vent models. The unit should not be allowed to hang by its wires during installation, and care should be taken to protect the circuit board and motor from direct rain exposure. Some vent models may require repositioning of the manual crank handle gear box.
