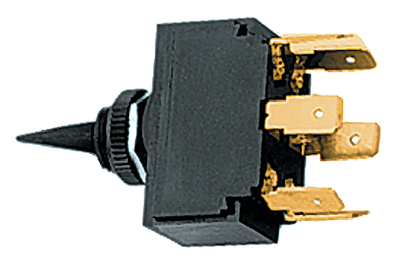

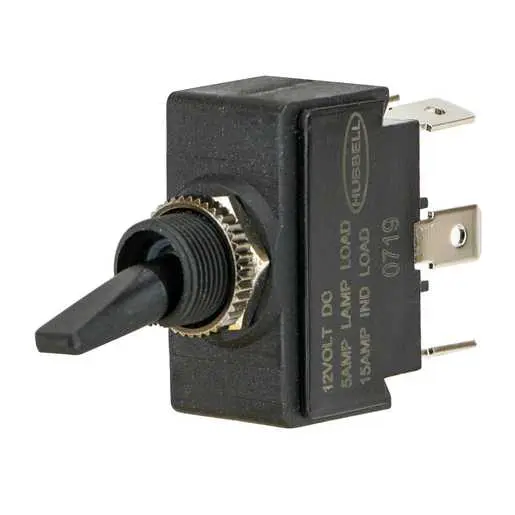

Hubbell M223SP Double Pole Double Throw Marine Toggle Switch On/Off/On 12V DC

The Hubbell M223SP is a marine-grade double pole, double throw (DPDT) toggle switch designed for reliable 12V DC applications. This robust panel-mount switch features an On/Off/On configuration with a flattened bat-handle lever actuator and black finish suitable for harsh marine environments.

Key Features:

• Double Pole, Double Throw (DPDT) configuration with 6 connection terminals
• On/Off/On switch function with center off position
• Rated for 15 amps at 12V DC applications
• Marine-grade construction for corrosion resistance
• 1/4 inch solder lug and quick connect spade terminals
• Requires 1/2 inch diameter mounting hole
• Fits panels up to 1/4 inch thick without backup nut, or up to 3/16 inch thick with included backup nut
• Flattened bat-handle lever actuator (0.67 inch length)
• Operating temperature range: -10°F to 105°F

Typical Applications: Navigation lights, windshield wipers, dual fuel tank switching, bilge pumps, and other marine electrical systems requiring reliable on/off/on control.

Specifications: DPDT contact form, 0.37 inch stem length, 0.480 inch stem diameter with 0.47 inch-32 UNC-2A thread. Black actuator with marine-grade corrosion-resistant materials throughout.
