The Lenco 15110-103 is a complete 12" x 12" Edge Mount Electric Trim Tab Kit designed to make your boat ride smoother, drier, and faster with improved safety — whether you're running a small skiff or a large yacht. This ready-to-install kit includes everything needed for a full trim tab system, including blades, actuators, wiring harnesses, hardware, and an LED indicator switch kit.
Lenco's Edge Mount design is a space-saving solution that mounts the actuators at the trailing edge of the blade, requiring approximately 4" less transom height than standard Lenco mount trim tabs. The minimum transom height requirement for 12" models is 11". This kit is suitable for boats ranging from 17' to 30' in length.
The trim tab blades are laser-cut from 12-gauge 304 stainless steel with 1" turned-up edges, an 85° inside taper, and a 5-degree taper on both sides to the trailing edge. Upper and lower high-impact, corrosion-resistant mounting brackets are included, along with a mechanical cable gland seal for a clean and secure installation. The fast-response electric actuators (part no. 15054-001) are fully submersible and feature all plug-and-play waterproof Deutsch connections for quick, reliable hookup.
The included LED Indicator Switch Kit (part no. 15170-001) features totally waterproof, maintenance-free, tactile switches that complete the system and provide clear visual feedback at the helm.

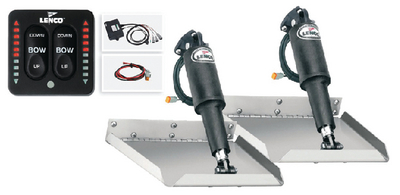

Kit Includes:
- (2) 12-volt actuators (15054-001) with 6' leads and Deutsch connectors
- (2) 20' actuator extension wiring harnesses (30133-103) with Deutsch connectors
- (2) 12-gauge 304 stainless steel trim tab blades — 12" x 12"
- Stainless steel mounting hardware
- High-impact corrosion-proof upper and lower mounting brackets with cable gland seal
- LED Indicator Switch Kit (15170-001)
The Lenco 15110-103 Edge Mount Trim Tab Kit delivers a complete, plug-and-play trim tab solution ideal for boaters who need a low-profile, space-saving installation without sacrificing performance or ease of use.
