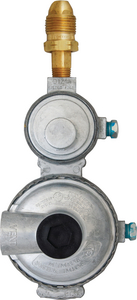

Marshall Excelsior Co. MEGR-295HP Two-Stage High Capacity Propane Regulator 225,000 BTU

The Marshall Excelsior MEGR-295HP is a high-capacity two-stage propane regulator designed for RV and residential LP gas systems requiring dependable 11 inch water column low-pressure output. With a 225,000 BTU rating and compact two-stage design, this regulator ensures steady gas flow to multiple appliances, making it an excellent solution for RV propane systems and domestic LP installations.

Key Specifications:

• BTU capacity: 225,000 BTU per hour
• Inlet connection: POL (Prest-O-Lite)
• Outlet connection: 3/8 inch FNPT
• Outlet pressure: 11 inch water column (low pressure)
• Vent style: 90-degree vent
• Maximum inlet pressure: 250 PSI
• Installation type: Horizontal mount

Construction & Features:

• Die-cast zinc body with zinc powder-coated finish for durability and long-term performance in outdoor environments
• Internal relief with spring-loaded diaphragm for reliable performance
• High and low 1/8 inch NPT pressure tap ports
• Integral second stage drip lip vent
• Green bonnet identifies high capacity model
• RV approved
• Meets UL, RVIA and NFPA requirements

Ideally suited for high demand RV applications, outdoor appliances, cabins, seasonal homes, gas fireplaces, water heaters, ranges, or other moderate to low demand domestic home installations. Marshall Excelsior provides a five-year warranty from the date of manufacture.
