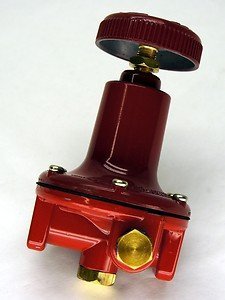

Marshall Excelsior MEGR-6120-30 Excela-Flo High Pressure Propane Regulator 1-30 PSI

The Marshall Excelsior MEGR-6120-30 is a high capacity, pounds to pounds, industrial gas regulator designed for propane and LP gas applications. Designed to conform to UL Standard 144 for use with LP Gas, this adjustable regulator provides precise pressure control from 1 to 30 PSI, making it ideal for RVs, propane heaters, burners, and other high-pressure applications.

Key Features:

• Die cast aluminum construction with wet coating and red finish
• Equipped with handwheel adjustment for easy pressure regulation
• 1/4 inch FNPT inlet and outlet connections
• Maximum supply pressure of 250 PSIG
• Liquid capacity: 3-5 GPH
• 750,000 BTU capacity, single stage
• Operating temperature range: -40° to +200° F
• Compact body design ideal for installations with space limitations

Technical Specifications:

• Outlet Pressure Range: 1-30 PSI adjustable
• Inlet/Outlet: 1/4 inch female NPT threads
• Gauge Port: 1/4 inch FNPT (gauge not included)
• Installation: Horizontal mount
• UL listed as high pressure, non-relief regulator

Important Notes:

• Not intended for use in pressure applications below 3 PSIG
• Contains brass materials that are not compatible with anhydrous ammonia service
• Compatible with propane (LP gas) and natural gas applications

This regulator is perfect for demanding applications requiring precise, adjustable high-pressure control. The durable die-cast aluminum construction and UL listing ensure reliable, safe operation across a wide range of temperature conditions. The compact design makes it particularly well-suited for RV installations, mobile equipment, and other applications where space is at a premium.
