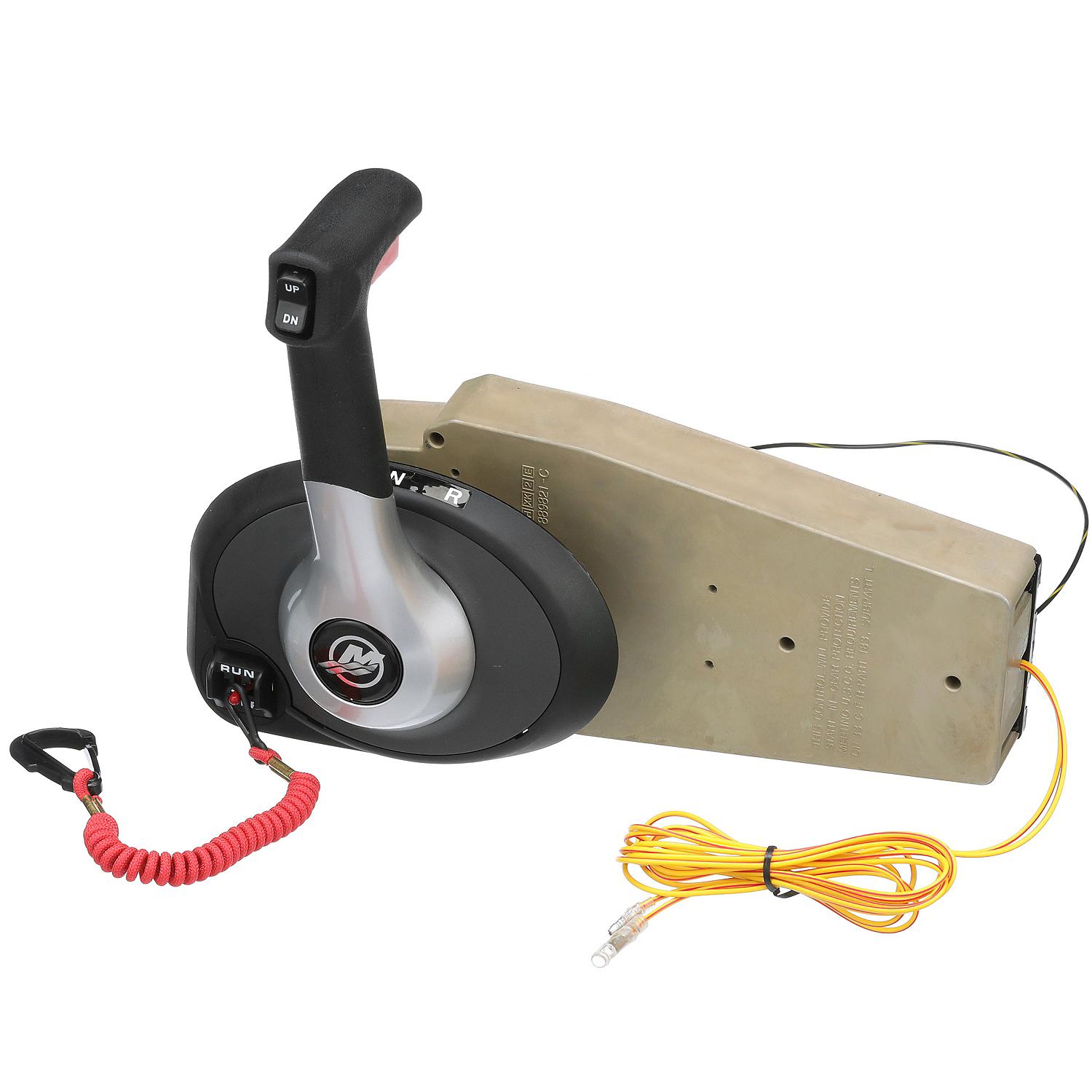

Quicksilver 883710A02 Panel Mount Outboard Remote Control with Trim & Lanyard Stop Switch

The Quicksilver 883710A02 is an OEM-specification, single-engine panel mount remote control designed for Mercury and Mariner outboards with integral power trim, as well as 1993 and newer Force 40 HP outboards using Mercury/Quicksilver-style cables. Built to the exact standards of Mercury Marine's Control-4000 Gen II platform, this control box delivers precise, confident throttle and shift operation for a wide range of outboard applications.

Key Features:

• Panel mount design — exposes only the throttle and shift lever; the cable mechanism stays concealed behind the boat's side wall for a clean, factory installation
• Chrome handle with Gen II lock bar system — the traditional lock bar control release is activated by lifting the red-colored lock bar button in the handle, providing a secure, intuitive gear-change action
• Integrated power trim switch — allows trim adjustment directly from the control handle for easy on-the-water adjustments
• Lanyard stop switch with bezel — built-in emergency lanyard kill switch for added safety
• Neutral lockout button — aids safe engine starting and warm-up by preventing accidental gear engagement
• Requires Gen II throttle and shift cables — compatible with Teleflex CC189 and CCX189 series Gen II control cables (cables sold separately)

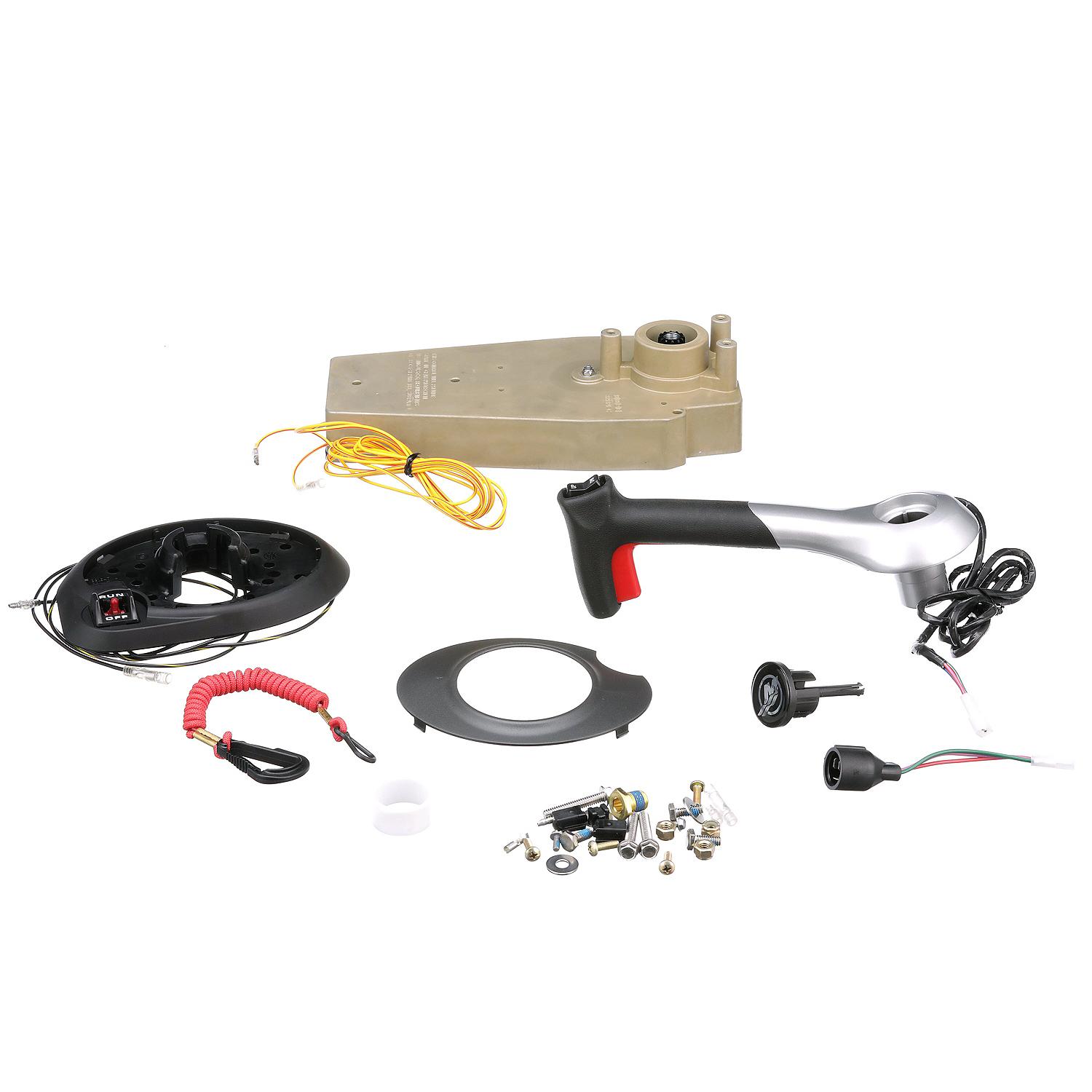

• Includes 4 ft. (1.22 m) trim harness with 3-pin Molex connector; a power trim adapter harness is included to convert the 3-pin Molex to the traditional 3-blade Mercury connector
• Neutral safety switch leads — 6.5 ft. (1.98 m) long with bullet connectors on the ends
• Lanyard switch leads — also terminated with bullet-style connectors for straightforward wiring
• Can be installed as right-hand or left-hand operation

Installation Note: A separate ignition/choke assembly and Gen II throttle/shift cables are required to complete the installation and are not included.

Manufactured to Mercury Marine OEM specifications, the Quicksilver 883710A02 is the direct-fit replacement control for Mercury, Mariner, and Force outboard applications requiring a panel mount solution with integrated trim and safety stop functions. UPC: 745061577114.
