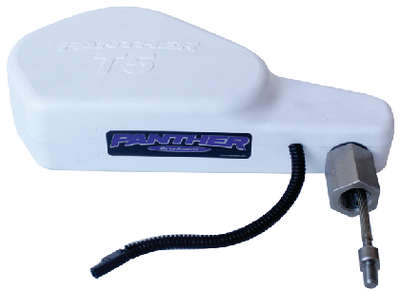

Panther 550503NE T5 Through Tilt Tube Electro Steer Saltwater No Electronics

The Panther T5 Electro Steer (550503NE) is a saltwater-rated electro-mechanical actuator kit engineered to provide push-button remote steering control for kicker motors up to 40 HP. The "NE" (No Electronics) variant is designed specifically for use with the TrollMaster Pro 3 electronic throttle and steering control unit — the TrollMaster's controller and receiver replace the standard onboard electronics, making this an ideal companion for boaters who already run a TrollMaster system.

The T5 mounts directly through the kicker motor's threaded tilt tube, eliminating the need to drill any holes in the transom. Only 4 inches of clearance between the main engine and the kicker motor is required, making it well-suited for tight transom configurations. Installation takes only minutes, and all necessary mounting hardware is included.

Key Features:

• Compatible with kicker motors up to 40 HP with a threaded tilt tube
• Designed to integrate with the TrollMaster Pro 3 control unit — does not include remote, controller, or relay switch box
• Through-the-tilt-tube mount — no transom drilling required
• Requires only 4" of space between main engine and kicker
• Operates on 12V at 5–7.5 amps
• Drive motor encased in water-resistant Delrin housing — saltwater rated
• Includes all mounting hardware and operator's manual
• Optional wireless remote available: Panther 55-0105

Important: This is not a standalone system. The 550503NE requires the TrollMaster Pro 3 control unit to operate. For a complete Electro Steer system with onboard electronics included, see Panther part number 550503.
