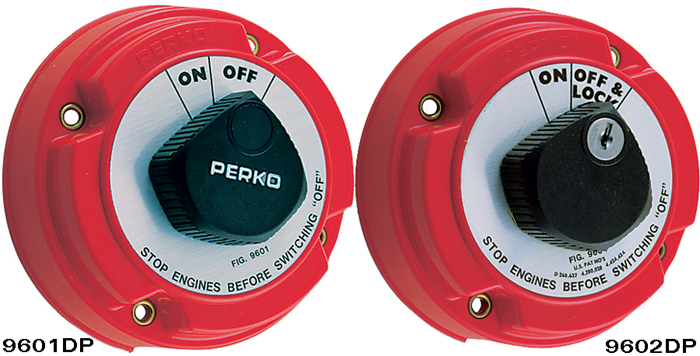

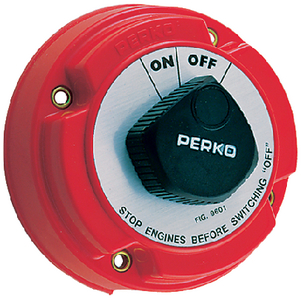

A tried and true design for a wide variety of applications.
Perko’s medium duty battery disconnect switches are super versatile. Compatible with 6V to 50V systems, this simple ON-OFF switch can be used as a standalone switch or as part of a larger system. Because it is ignition protected, this switch can be installed almost anywhere, including engine rooms of gasoline powered boats.
Key Features
- Simple On-OFF can be uses as a standalone switch or as part of a larger system
- Fiber-reinforced polycarbonate construction
- Easy-turn knob
- Ignition protected
- Five-year warranty
Specifications
- Switch Type: Single Battery On-Off switch
- Switch Positions: 2
- Battery Combine: No
- Alternator Field Disconnect: No
- Maximum Voltage: 50V
- Continuous Rating: 250A
- Intermittent Rating: 360A
- Cranking Rating (30 Seconds): N/A
- Battery Inputs: 1
- Cable Size to meet ratings: N/A
- Mounting Holes: #10 Screws
- Terminal Stud size: 5/16"
- Dimensions: 5 1/4"dia. x 2 5/8"D
- Weight: 1 Lb. (estimated)
- Approvals: UL Listed 716B, CE
