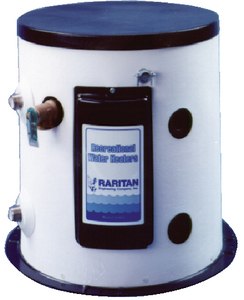

Raritan Engineering 170611 Marine Water Heater 6 Gallon 120V with Heat Exchanger

The Raritan 1700 Series water heater provides hot water for galley and shower, offering reliable performance specifically engineered for the demanding marine environment. This 6-gallon, 120V AC unit features an attractive polymer jacket that resists corrosion from dampness, while the glass-lined steel tank is more durable than stainless steel for long-lasting service life.

Key Features:

• Dense foam insulation provides better and longer heat retention than traditional fiberglass
• Innovative heat exchanger is over seven feet in length and is evenly coiled throughout the interior of the tank, providing hot water rapidly and efficiently
• Heat exchanger models can be connected to the engine cooling system, providing the added convenience of hot water when underway or generator power is not available
• Tank protected by a 75 PSI temperature and pressure relief valve
• Cylindrical design enables the tank to withstand more pressure than a cube-shaped tank
• 1250-Watt immersion type heating element with 13-gallon per hour dockside recovery rate
• Includes a replaceable magnesium anode to protect tank and neutralize acids in the water

Thermostat and Controls:

• Ignition-protected thermostat is factory set to 120°F, adjustable from 110° to 160°F with a safety shutdown limit of 190°F
• CFC-free foam insulation is environmentally friendly

Installation Specifications:

• All plumbing connections on the same side to simplify installation
• Hot and cold water connections are 3/4" male NPT; heat exchanger connections are 3/4" female NPT
• Tank dimensions: 14.5" diameter x 16.25" high
• Retrofits to most on-board pressure systems

Each unit is assembled by hand, individually tested and backed by Raritan's two-year Limited Warranty. The tank is covered by a five-year warranty.
