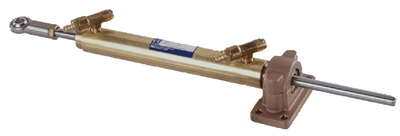

Seastar Solutions HC5379 Capilano Inboard Hydraulic Steering Cylinder BA200-11 TMC

The Seastar Solutions HC5379 is a heavy-duty Capilano inboard hydraulic steering cylinder designed for large vessel applications. This robust BA200-11 TMC model features a 2.00-inch bore diameter, 11-inch stroke, and 26 cubic inch displacement capacity, making it ideal for boats up to 70 feet in length with engines up to 1,500 HP when used in dual cylinder configurations.

Construction and Features:

• Heavy-duty brass cylinder with bronze trunnion mount for superior corrosion resistance
• 1-inch diameter stainless steel chrome-plated rod with bronze clevis (rod end ball clevis connection)
• Two-axis articulation provides flexible mounting and smooth operation
• Delivers 23,140 inch-pounds of torque (267.2 kg-m)
• Supplied with bleeder fittings for easy system purging
• Compatible with HS5185 seal kit for maintenance

Applications:

• Perfect for trawlers, pleasure boats, and commercial work vessels
• Designed for single or dual rudder inboard boats (single cylinder can handle dual rudder with tie bar)
• Compatible with Capilano helm pumps and widely used in Hynautic 3-Line systems
• Easy autopilot interface integration
• Suitable for single or dual station steering configurations

This professional-grade hydraulic cylinder is engineered for demanding marine environments and provides reliable, precise steering control for large displacement and planing hull vessels.
