Sierra trim and tilt motors are direct replacements that meet or exceed original equipment quality.
These tilt and trim motors are made to excel in the demanding marine environment. They feature 90-10 copper bushings for longer life, a high-temperature epoxy armature coating that strengthens and secures windings and heavy duty valves where needed. All required wire harnesses and relays are included.
Key Features:
- 90-10 copper bushings
- High-temperature epoxy armature
- Heavy-duty valves in appropriate applications
- Comes complete with wire harnesses and relays
- Limited lifetime warranty
Tilt/Trim Motor Selection Chart
| SIERR# | Applications | Interchange | Model |
|---|
| 18-6279 | Late model Force w/2-wire connection | Arco 6212; Chrysler/Force/US Marine F694541-1, 820545; Mallory 9-18200, 9-18209 | 5327481 |

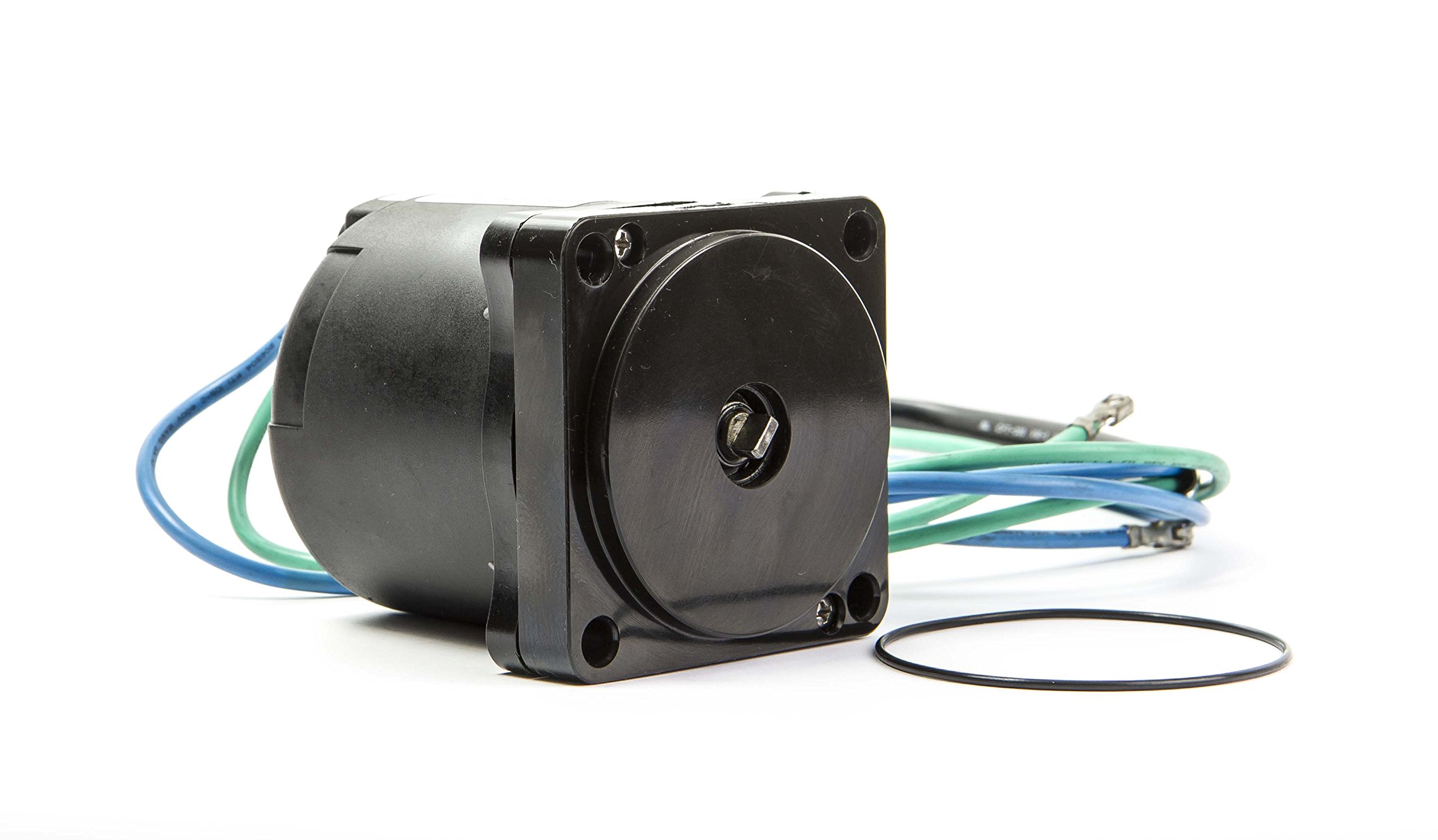

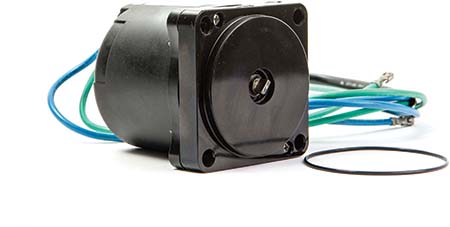

| 18-6281 | OMC outboards, 75hp to 250hp, 1998 and up, plastic housing; Includes O-Ring | Arco 6238; Johnson/Evinrude Outboard 438786, 5005254, 439937; Mallory 9-18106 | 5327507 |
| 18-6757 | Mercury 35-220hp (1985-92) w/ Design I, 3-ram side fill integral trim/tilt system w/ square style Eaton motor and 18-6273-1 tilt/trim motor pump assembly | Arco 6277; Mallory 9-18214 | 7862527 |
| 18-6759 | Johnson/Evinrude 2-wire trim systems, (1982-90), 3, 4, 6 and 8 cyl. | Arco 6220; Johnson/Evinrude Outboard 391264, 394176, 393988, 985237; Mallory 9-18104 | 136296 |
| 18-6760 | Yamaha 6G5-43880-02-00, O-ring included | Mallory 9-18405; Yamaha Outboard 6G5-43880-02-00, 6G5-43880-00-00, 6G5-43880-01-00 | 5327663 |
| 18-6762 | Johnson/Evinrude, for most 85, 115 and 135hp V-4 applications | Arco 6216; Chrysler/Force/US Marine 449541-3, 455541, Johnson/Evinrude Outboard 172543 | 5327671 |
| 18-6763 | Pre-1984 MerCruiser | Arco 6217; MerCruiser Stern Drive 92975A6, 79271A4; Mercury Marine 92975A32, 67914A2, 92975A28, 92975A22, 92975A4, 76395A2, 76395A5, 64461A4, 97528A3, 92975A6 | 419178 |
