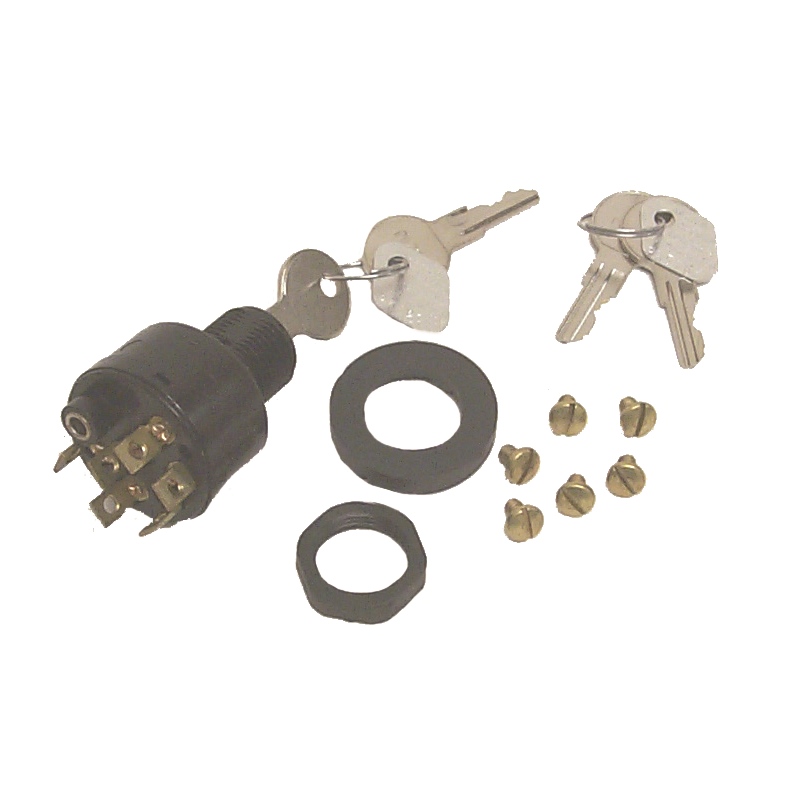

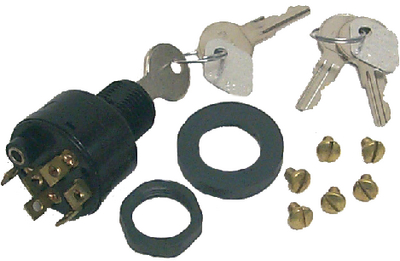

This magneto ignition switch is a direct replacement for Seadog OEM Part Number 420386-1.
Sierra's Polyester Ignition Switch is impact- and corrosion-resistant and installs in a standard 7/8"dia. hole. This four-position magneto switch provides Accessory-Off-Run-Start with push-to-choke. Includes two keys and different key codes for added security.
Key Features
- Maximum corrosion protection eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
- Four-position magneto switch
- Push-to-choke
- Exact OEM replacement for Seadog Part Number 420386-1
Specifications
- Material: Marine-grade glass-filled polyester
- Length: Short, 5/8" maximum panel thickness
- Hole Size: 7/8"
- Terminal Type: 6 screw tab, 1 boss screw
- Back Up Nut: Plastic
- Face Nut: Hex black plastic
- Choke: Push-to-choke
- Positions: Accessory-Off-Run-Start
Rated
- Ignition: 15A @ 12V DC
- Solenoid: 30A @ 12V DC
- Choke: 7A @ 12V DC
- Accessory: 15A @ 12V DC
The Sierra Engine Parts Selector
In addition to ignition switches, we offer a wide variety of other engine parts manufactured by Sierra. To see if we have the part you need, see our , where you can search by engine make, serial number and model or year of manufacture.
