Tie Down Eng 26528 Standard Grade Female T-Connector 5x5 Dock Hardware

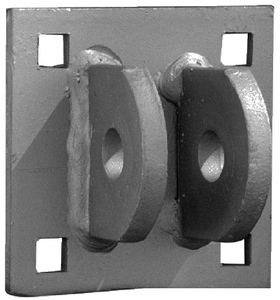

The Tie Down Engineering 26528 is a standard grade female T-connector designed to bolt to the side of a dock, providing a secure attachment point for dock fingers, ramps, and other dock sections. Constructed from hot-dip galvanized steel for superior corrosion resistance in marine environments, this connector is a foundational component in modular floating dock systems.

Key Features:

• Two welded 1/2" tabs with a 1-1/4" gap for reliable, load-bearing connections
• 5" x 5" mounting plate for a stable, flush mount against dock framing
• 3/16" plate thickness for standard-grade structural strength
• 0.813" diameter hole in tabs, centered 1.313" OC from the mounting plate
• Hot-dip galvanized finish for long-lasting corrosion and rust resistance
• Works in conjunction with male T-connectors to link dock sections and ramps

This female T-connector pairs with Tie Down Engineering's compatible male T-connector and connector pin set (sold separately) to create a fast, secure, and easily disassembled dock joint — ideal for seasonal dock setups and modular floating dock configurations.
