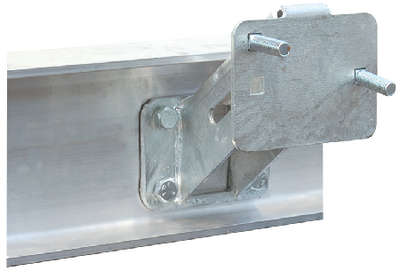

Tie Down Engineering 86064 Hot-Dip Galvanized Spare Tire Carrier for Aluminum I-Beam Trailers

The Tie Down Engineering 86064 is a heavy-duty spare tire carrier built specifically for aluminum I-beam frame trailers, including boat trailers and utility trailers. Constructed from corrosion-resistant steel with a hot-dip galvanized finish, this carrier is engineered to withstand harsh outdoor and marine environments for lasting, dependable protection.

The adjustable bolt circle design accommodates both 4-lug and 5-lug wheels, making it a versatile solution for a wide range of trailer setups. The carrier mounts the spare tire up and outward from the trailer frame for a clean, custom appearance while keeping the tire secure and accessible.

Key Features:

• Designed for most aluminum (I-beam) frame trailers
• Hot-dip galvanized steel construction for long-lasting corrosion resistance
• Adjustable bolt circle fits both 4-lug and 5-lug wheels
• Supports 5 on 4.5" bolt circle and 4 on 4" bolt circle configurations
• Mounts spare tire up and out from the frame for a clean profile
• Mounting plate measures 3-3/4" x 5" overall
• All hardware included: carriage bolts and lug nuts

Installation Notes: Four 9/16" holes must be drilled into the trailer I-beam frame for mounting. It is recommended to apply cloth-type duct tape between the carrier mounting surface and the aluminum I-beam to prevent galvanic corrosion at the contact points.
